*The UADP ASIC resides in the Cisco Catalyst 9600 Supervisor Engine 1.

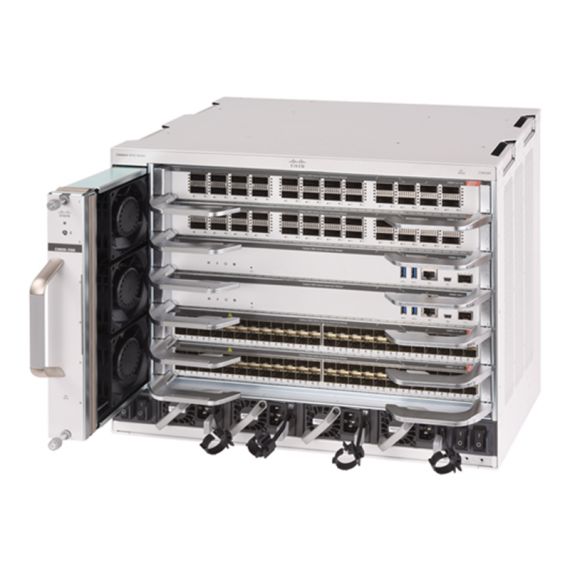

Figure 1.
Cisco Catalyst 9606R Chassis
Software
Platform software benefits
Cisco IOS XE
Cisco IOS XE Software opens a completely new paradigm in network configuration, operation, and monitoring through network automation. Cisco’s automation solution is open, standards-based, and extensible across the entire lifecycle of a network device. The various automation mechanisms are outlined below.
● Automated device provisioning is the ability to automate the process of upgrading software images and installing configuration files on Cisco Catalyst switches when they are being deployed in the network for the first time. Cisco provides turnkey solutions such as Plug and Play and Preboot Execution Environment (PXE) that enable an effortless and automated deployment.
● API-driven configuration is available with modern network switches such as Cisco Catalyst 9600 Series switches. It supports a wide range of automation features and provides robust open APIs over NETCONF and RESTCONF using YANG data models for external tools, both off the shelf and custom built, to automatically provision network resources.
● Granular visibility enables model-driven telemetry to stream data from a switch to a destination. The data to be streamed is identified through subscription to a data set in a YANG model. The subscribed data set is streamed to the destination at specified intervals. Additionally, Cisco IOS XE enables the push model. It provides near-real-time monitoring of the network, leading to quick detection and rectification of failures.
● Seamless software upgrades and patching supports OS resilience. On Cisco Catalyst 9600 Series switches Cisco IOS XE supports hot patching without reboot, which provides fixes for critical bugs and security vulnerabilities between regular maintenance releases. This support lets you add patches without having to wait for the next maintenance release.
● Trustworthy solutions built with Cisco Trust Anchor Technologies provide a highly secure foundation for Cisco products. With Cisco Catalyst 9600 Series switches, these technologies enable hardware and software authenticity assurance for supply chain trust and strong mitigation against man-in-the-middle attacks that compromise software and firmware. Trust Anchor capabilities include image signing, Secure Boot, and Cisco Trust Anchor module.
● High availability: Cisco Catalyst 9600 Series switches support high-availability features, including the following:
◦ Cross-stack EtherChannel provides the ability to configure Cisco EtherChannel technology across different members of the stack for high resiliency.
◦ IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) provides rapid spanning tree convergence independent of spanning tree timers and also offers the benefit of Layer 2 load balancing and distributed processing.
◦ Per-VLAN Rapid Spanning Tree (PVRST+) allows rapid spanning tree (IEEE 802.1w) reconvergence on a per-VLAN spanning tree basis, providing simpler configuration than MSTP. In both MSTP and PVRST+ modes, stacked units behave as a single spanning tree node.
◦ Switch-port auto-recovery (“err-disable” recovery) automatically attempts to reactivate a link that is disabled because of a network error.
The Foundation of Software-Defined Access
Secure Segmentation with SD-Access
The enterprise network lies at the heart of digital transformation. A network that is open, programmable, integrated, and secure maximizes business agility, allowing new business opportunities to be pursued and captured. But advanced and persistent security threats, the exponential growth of IoT devices and a mobility everywhere user experience requires a new type of network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks.
The Cisco Digital Network Architecture (Cisco DNA) with Software-Defined Access (SD-Access) is the network fabric that powers business. It is an open and extensible software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include:
● Simplified device deployment
● Unified management of wired and wireless networks
● Network virtualization and segmentation
● Group-based policies
● Context-based analytics
● SD-Access: Cisco Catalyst 9600 Series switches are the entry-level devices for SD-Access, Cisco’s lead enterprise architecture, with policy-based automation from edge to cloud.
◦ Simplified segmentation and micro-segmentation, with predictable performance and scalability
◦ Automation through Cisco DNA Center
◦ Policy handled through the Cisco Identity Services Engine (ISE)
◦ Faster launch of new business services and significantly improved issue resolution time
● Assurance
◦ Full network visibility and monitoring
◦ End-to-end Quality of Experience (QoE)
◦ Fast issue resolution and network remediation
● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network.
Full Flexible NetFlow
● Full Flexible NetFlow (FNF):
Cisco IOS FNF is the next generation in flow visibility technology. It enables optimization of the network infrastructure, reduces operation costs, and improves capacity planning and security incident detection with increased flexibility and scalability. Catalyst 9600 Series switches are capable of up to 294,000 flow entries.
QoS
● Superior QoS:
Cisco Catalyst 9600 Series switches offers Gigabit Ethernet speeds up to 100 Gbps with intelligent services that keep traffic flowing smoothly, even at 10 times the normal network speed. Industry-leading mechanisms for cross- stack marking, classification, and scheduling deliver superior performance for data, voice, and video traffic at wire speed. Superior QoS includes granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, Shaped Round Robin (SRR) scheduling, Committed Information Rate (CIR), and eight egress queues per port.
Smart Operation
● WebUI:
WebUI is an embedded GUI-based device-management tool that provides the ability to provision the device, to simplify device deployment and manageability, and to enhance the user experience. It comes with the default image, so there is no need to enable anything or install any license on the device. You can use WebUI to build configurations, and to monitor and troubleshoot the device without having CLI expertise.
● RFID tags:
Cisco Catalyst 9600 Series switches have an embedded RFID tag that facilitates easy asset and inventory management using commercial RFID readers.
● Blue beacon:
Cisco Catalyst 9600 Series switches support both front and back blue beacon LEDs for easy identification of the switch being accessed.
● Efficient switch operation*:
Cisco Catalyst 9600 Series switches provide optimum power saving with industry best-in-class power management and power consumption capabilities. The ports support reduced power modes so that ports not in use can move into a lower power utilization state. Other efficient switch operation features are as follows:
◦ Per-port power consumption command allows customers to specify a maximum power setting on an individual port.
◦ Per-port PoE power sensing measures actual power being drawn, enabling more intelligent control of powered devices. The PoE MIB provides proactive visibility into power usage and allows you to set different power-level thresholds.
● Bluetooth ready:
Cisco Catalyst 9600 Series switches have hardware support to connect a Bluetooth dongle to your switch, enabling you to use this wireless interface as an IP management port interface. The port can be used for configuration and troubleshooting using WebUI or the Command-Line Interface (CLI), and to transfer images and configurations.
High-Performance IP Routing
The Cisco Express Forwarding hardware routing architecture delivers extremely high-performance IP routing in Cisco Catalyst 9600 Series switches, based on:
● IP unicast routing protocols (including static, Routing Information Protocol Version 1 [RIPv1], RIPv2, RIPng, and Open Shortest Path First [OSPF], Routed Access) are supported for small network routing applications. Equal-cost routing facilitates Layer 3 load balancing and redundancy across the stack.
● Advanced IP unicast routing protocols (including Full [OSPF], Enhanced Interior Gateway Routing Protocol [EIGRP], and Intermediate System-to-Intermediate System Version 4 [IS-ISv4]) are supported for load balancing and for constructing scalable LANs. IPv6 routing (using OSPFv3 and EIGRPv6) is supported in hardware for maximum performance.
● Protocol-Independent Multicast (PIM) for IP multicast routing is supported, including PIM sparse mode (PIM SM), and Source-Specific Multicast (SSM).
● IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and troubleshooting.
Licensing
Software offers
Packaging: Network and Cisco DNA Licensing
The Cisco Catalyst 9000 family of switches introduces a new and simplified licensing package in the form of base and add- on licenses.
● The base licensing package includes Network Advantage licensing options that are tied to the hardware. The base licensing packages cover switching fundamentals, management automation, troubleshooting, and advanced switching features. These base licenses are perpetual.
● The add-on licensing package includes the Cisco DNA Premier, Cisco DNA Advantage options. In addition to on-box capabilities, the features available with this package provide Cisco innovations on the switch, as well as on Cisco DNA Center. The Cisco DNA add-on licenses are available as a subscription.
License consumption is easily determined by the package itself. While base licenses are always permanent and without an expiration date, add-on licenses have to be purchased for a 3, 5, or 7 year term (and hence are also known as term- based licenses). Table 9 shows the combinations of base and add-on licenses that must be purchased.
Supported licensing combinations
Table 1. License combinations
|
|
Cisco DNA Premier
|
Cisco DNA Advantage
|
|
Network Advantage
|
Yes
|
Yes
|
Cisco DNA Premier Subscription
Cisco DNA Premier subscriptions offer a flexible way to buy software for the access, WAN, and data center domains. At each stage in the product lifecycle, Cisco DNA Premier subscriptions help make buying, managing, and upgrading your network and infrastructure software easier. Cisco DNA Premier subscriptions provide:
● Flexible licensing models to smoothly distribute customers’ software spending over time
● Investment protection for software purchases through software services–enabled license portability
● Lower cost of entry with the new Cisco DNA Premier Subscription for Switching model
For ordering information for Cisco DNA Premier Software for Cisco Catalyst 9600 Series switches, go to: https://www.cisco.com/c/en/us/products/software/one-access/switching-part-numbers.html.
Cisco Catalyst 9600 Series switches run on Cisco IOS XE Release 16.11.1 or later. This software release includes all the features listed earlier in the Platform Software Benefits section.
Managing licenses with Smart Accounts: Creating Smart Accounts by using the Cisco Smart Software Manager (Cisco SSM) enables you to order devices and licensing packages and also manage your software licenses from a centralized website. You can set up Cisco SSM to receive daily email alerts and to be notified of expiring add-on licenses that you want to renew.
You must order an add-on license in order to purchase a switch. When the license term expires, you can either renew the add-on license to continue using it or deactivate the add-on license and then reload the switch to continue operating with the base license capabilities.
Both the base and add-on licenses are also available for a 90-day evaluation period. An evaluation license is activated temporarily, without purchase. An expired evaluation license cannot be reactivated after reload.
Note: It is not required to deploy Cisco DNA Center, just to use one of the above packages.
Network Licensing
Table 2. Network advantage package features
|
Features on Cisco Catalyst uplink switches
|
Network Advantage
|
|
Switch fundamentals
Layer 2, Routed Access (RIP, EIGRP Stub, OSPF), PBR, PIM Stub Multicast, PVLAN, VRRP, PBR, Cisco Discovery Protocol, QoS, FHS, 802.1X, CoPP, SXP, IP SLA Responder, SSO
|
✓
|
|
Advanced switch capabilities and scale
BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM SM, PIM SSM, PIM-BIDIR,* IP SLA, OSPF
|
✓
|
|
Network segmentation
VRF, VXLAN, LISP, SGT, MPLS, mVPN
|
✓
|
|
Automation
NETCONF, RESTCONF, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (on-box Python)
|
✓
|
|
Telemetry and visibility
Model-driven telemetry, sampled NetFlow, SPAN, RSPAN
|
✓
|
|
Security
MACsec-256
|
✓
|
Cisco DNA Licensing
Table 3. Cisco DNA Advantage, and premier package features
|
Features
|
Cisco DNA Advantage
|
Cisco DNA Premier
|
|
Switch features
|
|
Advanced telemetry and visibility
Full Flexible NetFlow, EEM
|
✓
|
✓
|
|
Cisco DNA Center features
|
|
Day-0 network bring-up automation
Cisco Network Plug-and-Play application, network settings, device credentials, LAN automation, host onboarding
|
✓
|
✓
|
|
Element management
Discovery, inventory, topology, software image, licensing, and configuration management
|
✓
|
✓
|
|
Element management
Patch management
|
✓
|
✓
|
|
Basic Assurance
Health dashboards – Network, Client, Application; switch and wired client health monitoring
|
✓
|
✓
|
|
SD-Access
Policy-based automation and assurance for wired and wireless
|
✓
|
✓
|
Cisco IOS XE
● This modern operating system for the enterprise provides support for model-driven programmability, on-box Python scripting, streaming telemetry, container-based application hosting, and patching for critical bug fixes. Cisco IOS® XE also has built-in defenses to protect against runtime attacks.
● Plug and Play enabled: A simple, secure, unified, and integrated offering eases new branch or campus device rollouts and can also be used to provide updates to an existing network.
● Advanced security
◦ Encrypted Traffic Analytics (ETA)*: This technology uses the power of machine learning to identify and take action toward threats or anomalies in your network. It includes malware detection in encrypted traffic and distributed anomaly detection.
◦ Advanced Encryption Standard 256 (AES-256) support with the powerful MACsec-256 encryption algorithm is available in hardware.
◦ Trustworthy solutions: Secure Unique Device Identification (SUDI) support for Plug and Play (PnP) tamper-proof device identity capability secures zero-touch provisioning by allowing your device to show a certificate to the server to be able to get on your network.
* ETA is not available at FCS, but will be available in future software releases
SD-Access
● SD-Access is Cisco’s leading enterprise architecture. It includes:
◦ Policy-based automation from edge to cloud
◦ Macro-segmentation and micro-segmentation made easy, with predictable performance and scalability
◦ Automation through the Cisco DNA Center Appliance
◦ Policy through the Cisco Identity Services Engine (ISE)
◦ Network assurance through the Network Data Platform
Cisco Catalyst 9600 Series chassis
Cisco Catalyst 9600 Series switches offers one chassis option and multiple line-card options (Table 1). It provides a common architecture that can scale up to 192 10 Gigabit or 25 Gigabit Ethernet ports. The Cisco Catalyst 9600 Series redundant chassis offer High Availability (HA) by supporting 1 + 1 redundant supervisor engines with full-image In-Service Software Upgrades (ISSU). NSF/SSO and ISSU help ensure continuous packet forwarding during supervisor engine switchover to enable HA for business-critical applications.
The Cisco Catalyst 9600 Series chassis is enterprise optimized, with efficient side-to-side airflow and full front accessibility for all removable components, including supervisors, line cards, power supplies, and fan tray. The chassis also supports optional rear accessibility for the fan tray to enable efficient cable management. The Cisco Catalyst 9600 Series chassis, supervisor, line cards, power supply, and fan tray have embedded RFID tags that facilitate easy asset and inventory management using commercial RFID readers.
Table 4. Chassis features
|
Feature
|
Cisco Catalyst 9606R chassis
|
|
Total number of slots
|
6
|
|
Line-card slots
|
4
|
|
Supervisor engine slots
|
2
|
|
Dedicated supervisor engine slot numbers
|
3 and 4
|
|
Supervisor engine redundancy
|
Yes
|
|
Supervisor engines supported
|
C9600-SUP-1
|
|
Maximum bandwidth scalability per line-card slot
|
6.4 Tbps**
2.4 Tbps***
|
|
Number of power supply bays
|
4
|
|
Minimum number of power supplies
|
2*
|
|
Power supplies supported
|
2000W AC, 2000W DC
|
|
Number of fan-tray bays
|
1
|
*Fully loaded 9606R chassis, Minimum 3 power supplies required if input voltage is 110V
**Hardware ready
***With C9600-SUP-1
Supervisor configuration
Cisco Catalyst 9600 Series switches offers an industry-leading supervisor engine built for secure networks, IoT applications, next-generation mobility, and cloud adoption. Supervisor Engine 1 is built with the latest UADP ASIC, with its programmable pipeline and template-based, configurable allocation of Layer 2, Layer 3, forwarding, ACLs and QoS entries, making it ready for next-generation technologies. Table 5 lists the maximum bandwidth per slot.
Table 5. Supervisor Engine 1 maximum bandwidth per slot
|
Feature
|
Cisco Catalyst 9600 Series Supervisor Engine 1
|
|
Cisco Catalyst 9606R chassis
|
2.4 Tbps per slot
|
Table 6 lists the minimum software requirements for the Cisco Catalyst 9600 Series Supervisor Engine 1.
Table 6. Supervisor Engine 1 minimum software requirements
|
Chassis
|
Supervisor engine
|
Minimum software requirement
|
|
Cisco 9606R
|
Cisco Catalyst 9600 Series Supervisor Engine 1
|
Cisco IOS XE Software Release 16.11.1
|
Line-card configuration options
Cisco Catalyst 9600 Series switches offers the ability to mix and match a range of line cards to support numerous cores and aggregation deployments. Supported line cards are listed in Table 7 by part number.
Table 7. Line cards
|
Product number
|
Description
|
Minimum software requirement
|
|
Cisco Catalyst 9600 Series line cards
|
|
C9600-LC-24C
|
Cisco Catalyst 9600 Series 24-port 40GE/12-Port 100GE
|
Cisco IOS XE Software Release 16.11.1
|
|
C9600-LC-48YL
|
Cisco Catalyst 9600 Series 48-port 25GE/10GE/(1GE*)
|
Cisco IOS XE Software Release 16.11.1
|
|
C9600-LC-48TX
|
Cisco Catalyst 9600 Series 48-port RJ45 Copper - 10GE/5GE/2.5GE/1GE/100Mbps/10Mbps
|
Cisco IOX XE Software Release 17.1.1
|
*Not available at First Customer Shipment (FCS), supported from IOX-XE 16.12.2
Cisco Catalyst 9600 Series switches has flexible interface types and port densities that allow you to mix and match network configurations to meet the specific needs of campus networks (Table 8).
Table 8. Maximum chassis port densities
|
Cisco Catalyst 9606R Chassis
|
C9600-SUP-1
|
|
100G
|
48
|
|
40G
|
96
|
|
25G
|
192
|
|
10G
|
192
|
|
5G**
|
192
|
|
2.5G**
|
192
|
|
1G*
|
192
|
|
100M**
|
192
|
|
10M**
|
192
|
*Not available at First Customer Shipment (FCS), Supported from IOX-XE 16.12.2
** - Using C9600-LC-48TX
Physical specifications
Table 9 lists physical specifications of the Cisco Catalyst 9606 chassis.
Table 9. Physical specifications of Cisco Catalyst 9606 chassis
|
Description
|
Specifications
|
|
SKU
|
C9606R
|
|
Dimensions (H x W x D)
|
35.43 x 44.2 x 40.9 cm
13.95 x 17.4 x 16.1 in.
|
|
Rack Units (RU)
|
8
|
|
Chassis weight with 2 power supplies (AC) and fan tray
|
31.31 kg (69.03 lb)
|
|
Input voltage
|
AC: 90V to 264V, 47 to 63 Hz AC
DC: -40V to -72V
|
|
Operating temperature
|
-5° to 45° C (23° to 113° F) up to 6000 feet
-5° to 40° C (23° to 104° F) up to 10,000 feet
|
|
Storage temperature
|
-40° to 75° C (40° to 167° F)
|
|
Relative humidity, operating and nonoperating, noncondensing
|
10% to 95%, noncondensing
|
|
Altitude
|
-60 to 3000 m (-197 to 9843 feet)
|
|
Mean Time Between Failures (MTBF) (hours)
|
C9606R chassis: 4,113,900
C9606 fan tray: 452,570
|
|
Chassis weight (without fan tray, without PSU)
|
25.36 kg
(55.90 lb)
|
|
Weight of fan tray
|
3.56 kg
(7.85 lb)
|
|
Weight of individual PSUs
|
AC PSU: 1.2 kg (2.65 lb)
DC PSU: 1.28 kg (2.82 lb)
|
Power supply
The Cisco Catalyst 9600 Series power supplies support two modes of operation.
Combined mode
In combined mode, the power available for the entire chassis is equal to the sum of the output power of all of the power supplies multiplied by the share ratio. Additional power supply units operate at ~90% capacity. In combined mode, the power supplies need to be of equal wattage. The power supplies can be AC and DC mixed provided AC input voltage is 220V. Table 10 shows the power output for one, two, three, and four PSUs.
P = Power output of one PSU
Total combined mode power = P + (N-1) * P * (share ratio)
N = 1, 2, 3, or 4
Table 10. Power output in combined mode
|
Input voltage
|
1 PSU
|
2 PSUs
|
3 PSUs
|
4 PSUs
|
|
110V
|
1050W
|
2040W
|
3030W
|
4020W
|
|
220V
|
2000W
|
3940W
|
5880W
|
7820W
|
Redundant N+1 mode
The Cisco Catalyst 9600 Series chassis also supports N+1 redundancy, with N independent input circuits and safeguards against the failure of one (+1) of the circuits during a PSU failure. Additional PSUs operate at ~90% capacity. In redundant mode, the power supplies need to be of equal wattage. The power supplies can be AC and DC mixed provided AC input voltage is 220V. Table 11 shows the power output with two, three, and four PSUs.
Table 11. Power Output in N+1 mode
|
Input voltage
|
2 PSUs
|
3 PSUs
|
4 PSUs
|
|
110V
|
1050W
|
2040W
|
3030W
|
|
220V
|
2000W
|
3940W
|
5880W
|
Table 12 gives the power supply specifications for Cisco Catalyst 9600 Series switches. Table 13 shows the BTU output.
Table 12. Power supply specifications
|
Power supply feature
|
C9600-PWR-2KWAC
|
C9600-PWR-2KWDC
|
|
Max power rating
|
2000W
|
2000W
|
|
Input voltage range and frequency
|
90VAC to 140VAC and 180VAC to 264VAC 47 to 63 Hz
|
-40VDC to -72VDC
|
|
Power supply efficiency
|
94% (typical)
|
92% (typical)
|
|
Input current
|
AC 10.5A max at 115VAC (1050W)
7.8 A max at 230VAC (2000W)
|
Maximum: 60A per DC input at -40VDC input
(when full PSU loading)
|
|
Output ratings
|
12Vmain at 167A
|
12Vmain at 167A
|
|
Output holdup time
|
AC = 20 ms minimum for system
|
AC = 5 ms minimum for system
|
|
Power-supply input receptacles
|
AC IEC 60320 C16
|
Amphenol C10-638976-000
|
|
Power cord rating
|
AC 15A
|
DC 70A
|
Table 13. BTU details for 9606R chassis with fan tray
|
Total output BTU
|
BTU
|
|
C9606R + C9606-FAN
|
1621 (max)*
|
*The power listed in Table 13 is the absolute maximum. Typically, the power would be 70% of absolute maximum
Table 14. Cisco Catalyst 9600 Series power cord options
|
C9600-PWR-2KWAC
|
|
CAB-TA-CN
|
China AC Type A Power Cable
|
|
CAB-TA-IS
|
Israel AC Type A Power Cable
|
|
CAB-TA-AP
|
Australia AC Type A Power Cable
|
|
CAB-TA-AR
|
Argentina AC Type A Power Cable
|
|
CAB-TA-DN
|
Denmark AC Type A Power Cable
|
|
CAB-TA-EU
|
Europe AC Type A Power Cable
|
|
CAB-TA-IN
|
India AC Type A Power Cable
|
|
CAB-TA-IT
|
Italy AC Type A Power Cable
|
|
CAB-TA-SW
|
Switzerland AC Type A Power Cable
|
|
CAB-TA-UK
|
United Kingdom AC Type A Power Cable
|
|
CAB-TA-NA
|
North America AC Type A Power Cable
|
|
CAB-C15-CBN
|
Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15 Connectors
|
|
CAB-TA-JP
|
Japan AC Type A Power Cable
|
|
CAB-C15-CBN-JP
|
Japan Cabinet Jumper Power Cord, 250 VAC 12A, C14-C15
|
|
CAB-TA-250V-JP
|
Japan 250V AC Type A Power Cable
|
|
CAB-ACBZ-12A
|
AC Power Cord (Brazil) 12A/125V BR-3-20 plug up to 12A
|
|
PWR-2KW-DC-CBL
|
Power Cord - 2KW DC
|
Fan tray
Each Cisco Catalyst 9600 Series switches uses a single serviceable fan tray for cooling. The switches can optionally be accessed from the rear for flexible cable management. The chassis is optimized for enterprise closets, with side-to-side airflow. All fan trays are composed of multiple independently controlled fans. If any single fan fails, the system will continue to operate without a significant degradation in cooling. Fan speeds change dynamically to compensate for fan failure. Cisco Catalyst 9600 Series fans have a barometric sensor, which allows slower fan speed curves at lower altitudes. The fans also have individual Pulse-Wide Modulation (PWM) fine-tuning to reduce variability in fan revolutions per minute (rpm) under throttled conditions. The measured acoustic noise in a formal NEBS test environment is 77.7 Lwad (dB). The chassis are designed to accommodate fanless operation of up to 90 seconds to enable serviceability.
Regulatory standards compliance
Table 15 lists the regulatory standards compliance for Cisco Catalyst 9600 Series switches.
Table 15. Safety and compliance information (TBD)
|
Description
|
Specification
|
|
Safety certifications
|
C9606R
● IEC 60950-1 plus Am1, Am2, Am9, Am10, Am11, Am12 and all deviations and differences
● AS/NZS 60950.1.2011
● CAN/CSA-C22.2 No. 60950-1-07
● GB 4943-95
● EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences
● NOM-019-SCFI-1998
● UL 60950-1, Second Edition
|
|
EMI and EMC compliance
|
47 CFR Part 15 Class A
CNS13438: 2006 Class A
EN 300 386 V1.6.1
EN61000-3-2: 2014
EN61000-3-3: 2013
ICES-003 Issue 6: 2016 Class A
KN 32: 2015 Class A
TCVN 7189: 2009 Class A
EN 55032:2012/ AC:2013 Class A
EN 55032:2015 Class A
CISPR 32 Edition 2 Class A
V-2/2015.04 Class A
V-3/2015.04 Class A
CISPR24: 2010 + A1: 2015
EN 300 386 V1.6.1
EN55024: 2010 + A1: 2015
KN35: 2015
TCVN 7317: 2003
|
Cisco Environmental Sustainability
Information about Cisco’s environmental sustainability policies and initiatives for our products, solutions, operations, and extended operations or supply chain is provided in the “Environment Sustainability” section of Cisco’s Corporate Social Responsibility (CSR) Report.
Reference links to information about key environmental sustainability topics (mentioned in the “Environment Sustainability” section of the CSR Report) are provided in the following table:
|
Sustainability Topic
|
Reference
|
|
Information on product-material-content laws and regulations
|
Materials
|
|
Information on electronic waste laws and regulations, including products, batteries and packaging
|
WEEE Compliance
|
Reference links to product-specific environmental sustainability information that is mentioned in relevant sections of this data sheet are provided in the following table:
|
Sustainability Topic
|
Reference
|
|
General
|
|
Eco-Design Compliance (EU ErP Lot, Etc.)
Environmental Certifications (EPEAT, Energy Star, Etc.)
|
N.A.
Table 15
|
|
Power
|
|
Idle, Typical or Max Product Power
Hardware Enabled Energy Features
|
Table 10, Table 11, Table 12
N.A
|
|
Software Enabled Energy Features
Power Supply Information
Power Calculator
|
N.A
Table 10, Table 11, Table 12
Table 10, Table 11, Table 12
|
|
Material
|
|
Unit Weight
System Weight (Product + Packaging)
Recycled Content
|
Table 9. Physical Specifications
N.A
N.A
|
Cisco makes the packaging data available for informational purposes only. It may not reflect the most current legal developments, and Cisco does not represent, warrant or guarantee that it is complete, accurate or up-to-date. This information is subject to change without notice.
Cisco Enhanced Limited Lifetime Hardware Warranty
Cisco Catalyst 9600 Series switches come with an Enhanced Limited Lifetime Warranty (E-LLW) that includes Next-Business-Day (NBD) delivery of replacement hardware where available and 90 days of 8x5 Cisco Technical Assistance Center (TAC) support. Your formal warranty statement, including the warranty applicable to Cisco software, appears in the information packet that accompanies your Cisco product. We encourage you to carefully review the warranty statement shipped with your specific product before use. Cisco reserves the right to refund the purchase price as its exclusive warranty remedy. For further information about warranty terms, visit https://www.cisco.com/go/warranty.
Table 17 provides information about the E-LLW.
Table 17. E-LLW details
|
|
Cisco E-LLW
|
|
Devices covered
|
Applies to Cisco Catalyst 9600 Series switches.
|
|
Warranty duration
|
As long as the original customer owns the product.
|
|
End-of-life policy
|
In the event of discontinuance of product manufacture, Cisco warranty support is limited to 5 years from the announcement of discontinuance.
|
|
Hardware replacement
|
Cisco or its service center will use commercially reasonable efforts to ship a replacement for NBD delivery, where available. Otherwise, a replacement will be shipped within 10 working days after receipt of the Return Materials Authorization (RMA) request. Actual delivery times might vary depending on customer location.
|
|
Effective date
|
Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller, not more than 90 days after original shipment by Cisco).
|
|
TAC support
|
Cisco will provide during business hours, 8 hours per day, 5 days per week, basic configuration, diagnosis, and troubleshooting of device-level problems for up to a 90-day period from the date of shipment of the originally purchased Cisco Catalyst 9600 Series product. This support does not include solution or network-level support beyond the specific device under consideration.
|
|
Cisco.com access
|
Warranty allows guest access only to Cisco.com.
|
