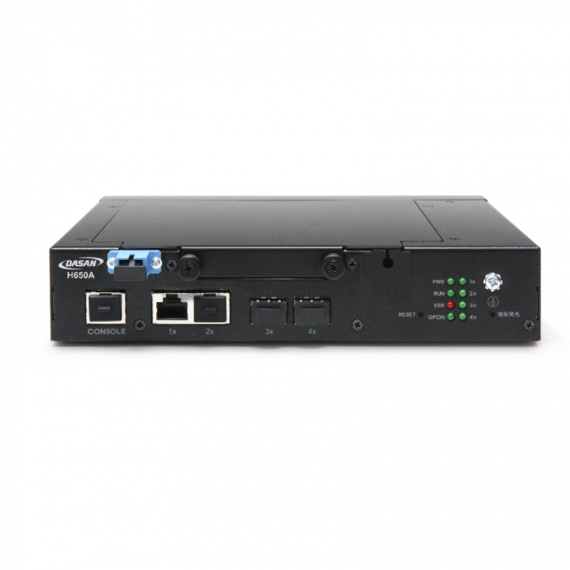

The H650A is a G-PON ONT that can be widely used not only for general households but also for enterprise solutions for business customers.
The H650A provides one G-PON port, two 10/100 / 1000BASE-T ports and two 1000BASE-X ports. The power supply also supports a fixed AC / DC input terminal and a modular DC input terminal (PSU_DC).
The H650A can be used as a modem or installed in a 19-inch rack. In addition, LEDs on the front and rear provide easy to see the operating status of the device.
DIMENSION
Size (W x H x D)]
• 270 × 135 × 40 mm
POWER
Input Power
• Power adapter: 5VDC/3A
• PSU_DC module: -48VDC
INTERFACES
Uplink Interface
• 1 GPON port (SC/UPC, SFF Type
Service Interface
• 2 10/100/1000Base-T ports (RJ45)
• 2 1000Base-X ports (SFP
PROTOCOL SUPPORT
G-PON
• ITU-T G.984 compliance
• 128 Bit AES Encrypon : Security Guaranteed
• Support Forward Error Correcon (FEC)
• PON Encapsulaon Method (GEM) port: 256 (port id)
• 40 T-CONTs
• GPON ONU Transceiver
– ITU-T G.984.2 compliant GPON ONU class B+
– Support Digital Diagnosc Monitoring interface
– Burst mode applicaon
L2 Features
• Untagged port configuration
• Standard Ethernet bridging
• Spanning tree protocol
• Address learning with auto aging
• Bridging acc. to IEEE 802.1D and IEEE 802.1Q
Mulicast
• IGMP snooping
QoS
• HW-based internal IEEE 802.1p (CoS)
• SP(Strict Priority) Scheduler
• Muliple flow queue (4)
• QoS mapping based on 802.1q (VLAN tag)
• Classificaon by GEM Port-ID for downstream QoS
Standard
• IEEE 802.1D STP
• IEEE 802.1p Strict Priority
• IEEE 802.1Q VLAN
• IEEE 802.1q Tag VLAN
• IEEE 802.3u Fast Ethernet
• IEEE 802.3x flow control for UNI port
MANAGEMENT
OMCI
OPERATING REQUIREMENTS
Operating Temperature
• 0 to 50°C
Humidity
• 5 to 90%
