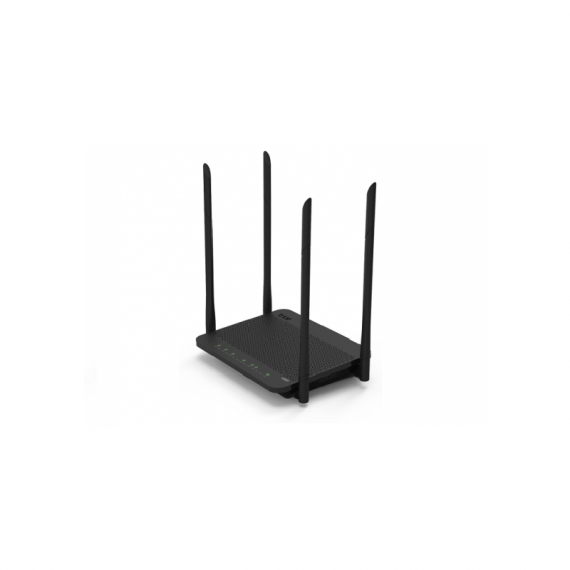

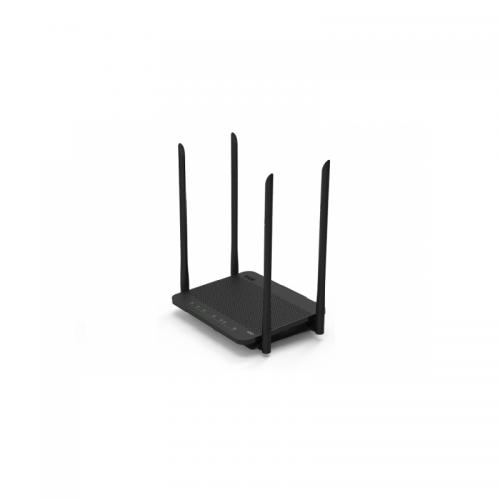

H660W ONT

You can take advantage of everything from home and enterprise solutions to business customers with H660W. The H660W offers GPON Uplink, four Gigabit LAN ports, one USB host interface and wireless WiFi Internet service.

The H660W supports Wi-Fi 802.11 b/g/n with Triple-play and supports integrated services within the home. 2.5G Downstream and 1.25G Upstream GPON interface supporting the standard of ITU-T G.984, supports Triple Play Serivice voice, video and high-speed internet service.

H660W provides high speed internet service with port forwarding, NAT, NAPT and PPPoE client with wire-speed L2 switch and L3 routing gateway function.

DIMENSIONS

Size (WxHxD)

• 160 x 54.3 x 130 mm

POWER

Input Power

• 12V/1A

INTERFACES

Uplink Port

• SC/APC connector for GPON

Service Port

• 4 x RJ45 10/100/1000Base-T

• USB Host Port

• 2×2 11n WiFi

PROTOCOL SUPPORT

GPON

• ITU-T G.984 compliant

• Forward Error Correction (FEC)

• Multiple T-CONTs/GEM ports per device

• Flexible mapping between GEM port and T-CONT

• Dying gasp

Layer 2

• Untagged port configuration

• Standard Ethernet bridging

• MAC address learning with auto aging(Up to 4K MAC addresses)

RGU (L3,Routing mode)

• PPPoE client : one client per RG ONT

• DHCP server / client

• DNS Relay server (DNS relay, DNS transparent)

• NAT and NAPT: 16K session (US 8K, DS 8K)

• Port forwarding

• Stateful packet inspection firewall with ACL

VLAN

• VLAN port filtering

• Destination address port filtering

Multicast

• IGMP snooping

Wi-Fi

• IEEE802.11a/b/g/n compliant

• Multiple SSIDs

• 64/128bit wireless encryption protocol(WEP)

MANAGEMENT

• Web GUI

• CLI

OPERATING REQUIREMENTS

Operating Temperature

• -5~50°C

Humidity

• 20~90% (non-condensing)
