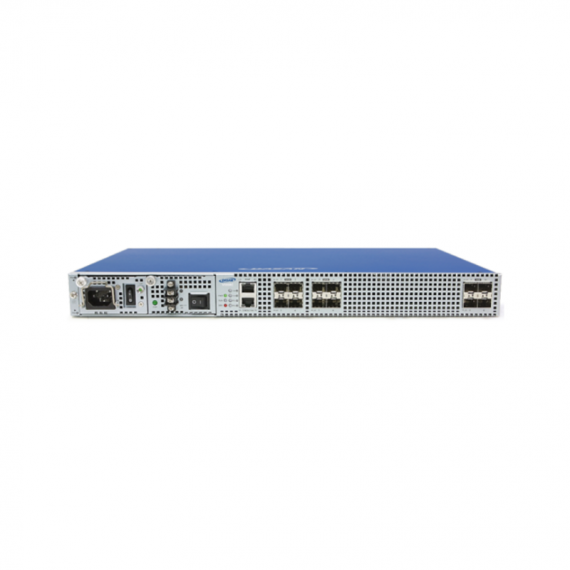

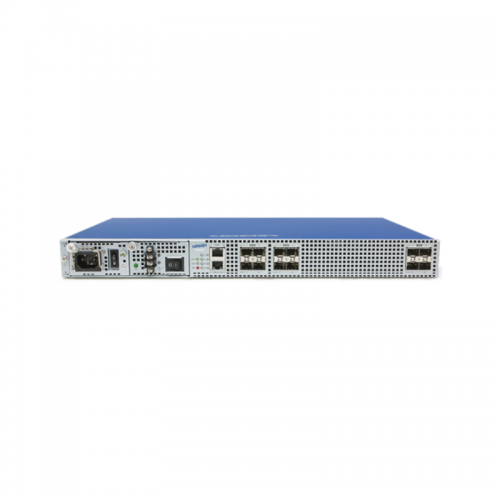

OLT V5804
OLT V5804
  • Model
    V5804
  • Brand
    DASAN
  • Price
    Call
  • Description
    108 Gbps switching capacity
    4 GPON ports, 4 10GE ports and 4 GE (Electric) ports
    High Capacity Uplink / Service Interface 2.5Gbps (down)/1.25Gbps (up)
    Reliable FTTx service with power redundancy system
    Enhanced QoS services
    IGMP support for IPTV
    Fully Managed via Dasan’s INAS Element Manager
    Increased reliability through power redundancy
    Comfortable network management with SNMPv2 / v3 and RMON
Quantity :
Describe Product

As the number of services using internet communication such as broadband internet, internet phone, and IPTV is increasing, the need for high performance network equipment is increasing. This is not an exception in areas where population density is low and where there are few subscribers. You can plan more effectively in terms of the cost of network deployment.

The V5804 is a compact GPON OLT system with four GPON ports, four 1G / 10GBase-R ports for uplinks and four 1000Base-T ports, making it suitable for low-density areas and offering FTTx services at low cost.

The V5804 supports Gigabit ports and can be used in a variety of network environments. In addition, the redundant configuration of the power supply is realized, and the network system is not interrupted, ensuring stable service.

Specifications

WEIGHT & DIMENSIONS

Size (W x H x D)

• 440 x 44 x 270mm

POWER

Input Power

• AC type : 100-240VAC, 50/60Hz

• DC type : -48/60VDC

INTERFACES

Service Ports

• 4 GPON(SFP, SC/PC type)

Uplink Ports

• 4 GE Electric Port [100/1000Base-T (RJ45)]

• 4 1G/10GBase-R (SFP+) ports

MGMT Ports

• 1 100/1000Base-TX (RJ45)

Console Port

• 1 Console (RS232)

PROTOCOL SUPPORT

Layer 2

• Standard Ethernet bridging

• Port/Subnet/Protocol-based VLAN

• Spanning Tree: STP, RSTP, MSTP

• 802.3ad Link aggregation based on MAC

Layer 3

• L3 Host(IPv4/IPv6) 1.5K/768

• Static routing

• 1K L2 Multicast

• 1p mapper service profile on U/S

• Mapping of GEM Ports into a T-CONT with priority queues based scheduling

• Support for Multicast GEM Port

Multicast

• IGMPv1/v2/v3

• IGMP snooping

• IGMP filtering and throttling

• Multicast VLAN Registration (MVR)

GPON

• ITU-T G.984 compliant

• Supports ITU-T G.984.4 ONT Management & Control Interface (OMCI)

• Remote ONT/ONU management

• Automatic ONT ranging

• 4k port-ID and 1k alloc-ID

MANAGEMENT

Management Interface

• Serial / Telnet (CLI)

• SNMPv1/v2/v3

• DHCP server, relay agent with option82

• Remote Monitoring (RMON)

OPERATING REQUIREMENTS

Operating Temperature

• -20~60°C

Humidity

• 0~90% (non-condensing)
