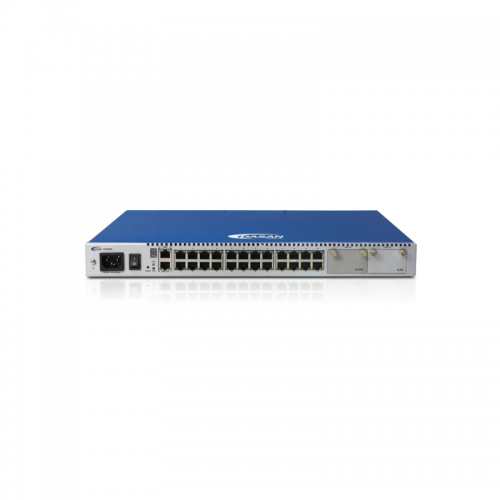

V2224G Gigabit Ethernet Switch

WEIGHT & DIMENSIONS

Size (W x H x D)

• 440 x 44 x 266 mm

POWER

Input

• AC : 100-240VAC (50/60Hz)
• DC : -48/60VDC

Power Consumption

• Max. 40W

INTERFACES

Service Port

• 24 Port 10/100/1000BASE-T(RJ-45)

Uplink Port (Modular Type)

• 1 Port supports per Modular
  1. 1000BASE-X(SFP)
  2. G-PON(SC/APC type)
  3. 10GBASE-R(SFP+)
• 2 Port supports per Modular
  1. 1000BASE-X (SFP)

Console Port

• 1 Port RS-232 (RJ45) connector

MGMT Port

• 1 Port management 10/100BASE-TX (RJ-45)

PROTOCOL SUPPORT

L2 Features

• Standard Ethernet Bridging
• Port/Subnet/Protocol based VLAN
• 16K MAC address entries
• 4K VLANs
• Jumbo frame 9K
• STP/RSTP/MSTP/PVSTP/PVRSTP
• 802.3ad link aggregation
• Port mirroring

Security & QoS

• Ethernet type/L4-based ACL
• SSH v1/v2
• 4 queues per port
• Conditional rate limiting
• RADIUS, TACACS+ authentication

Multicast

• IGMP v1/v2/v3
• IGMP snooping
• Multicast VLAN Registration(MVR)

MANAGEMENT

Interface

• Serial/Telnet(CLI)
• SNMP v1/v2/v3
• RMON

OPERATING REQUIREMENTS

Operating Temperature

• -20°C ~ 60°C

Storage Temperature

• -40°C ~ 70 °C

Humidity

• 5% ~ 90% (non-condensing)

The V2224G Gigabit Ethernet Switch is a 1 RU singleboard Layer 2 switch that is optimized to provide operators with a cost-effective solution for expanding networks.

Offering 24 10/100/1000Base-T interface ports and two mounting slots for optional uplink modules, the V2224G provides the flexibility needed for a variety of network architectures.

The uplink interface supports GPON (SC/APC), EPON (SC/PC), or 1000Base-X (SFP), as a modular unit.

The V2224G can also be used as a GPON Multi Dwelling Unit (MDU) by utilizing the optional uplink modules introducing a point-to-multipoint scenario for cost-effective FTTx service delivery.
