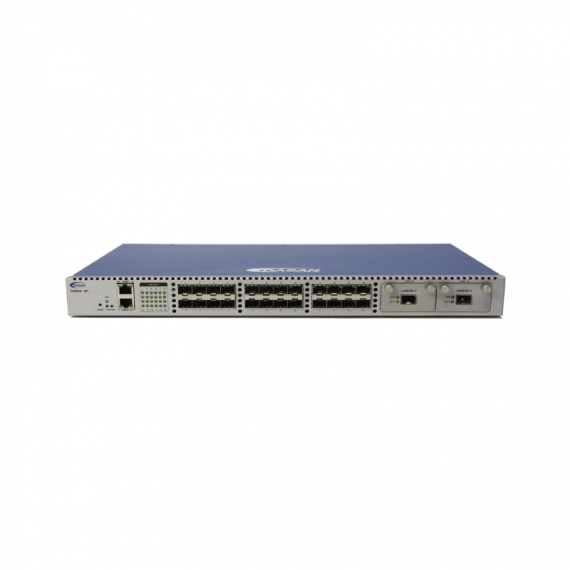

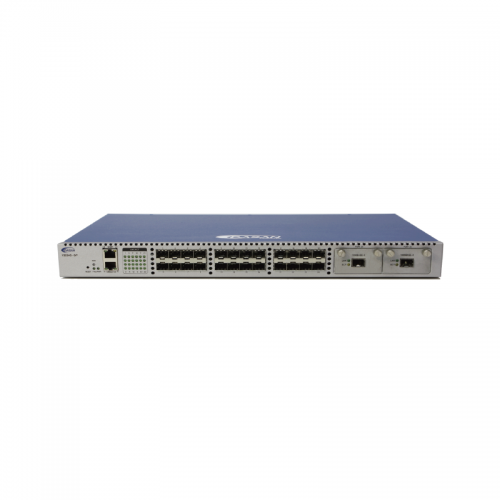

V2224G-OP Gigabit Ethernet switch

The V2224G-OP is a 1 RU LayDAer 2 Gigabit Ethernet switch providing up to 24 GbE SFP(100/1000Base-X) subscriber service ports and 2 slots for uplink modules.

For the uplink interface unit, there are 1-Port 1000Base-X (SFP) / E-PON / 10GBase-R (SFP+) and 2-Port 1000Base-X (SFP) modular type unit.

Each uplink module can be inserted into two front slots.

The V2224G-OP is a perfect solution for expanding networks, to allow network operators the ability to extend GbE services to small businesses and Multi-Dwelling Units (MDUs).

DZS’s PON technology adds new features targeted to improve performance, interoperability, services, support for new applications, and a variety of deployment scenarios.

WEIGHT & DIMENSIONS

Size (W x H x D)

• 440 x 44 x 300 mm

POWER

Input

• Single AC type : 100-240VAC (50/60Hz)
• Single DC type : -48/60VDC

Power Consumption

• Max. 37W

INTERFACES

Service Port

• 24 Port 100/1000Base-X ports (SFP)

Uplink Port

• 2 Port 1000Base-X (SFP)
• 1 Port 1000Base-X (SFP)
• 1 Port EPON (SC/PC)
• 1 Port 10GBase-R (SFP+)

Console Port

• 1 Port (RJ45)

MGMT Port

• 1 Port 10/100Base-TX (RJ45)

PROTOCOLS SUPPORT

Layer 2

• Standard Ethernet bridging
• Port/Subnet/Protocol based VLAN
• 16K MAC address entries
• 4K VLANs
• Jumbo frame 9K
• Spanning tree (STP/RSTP/MSTP)
• 802.3ad Link aggregation
• Port mirroring
• Flow control

QoS

• Rate limiting per port
• Traffic scheduling (SP, WRR, DRR)
• 4 queues per port

SECURITY

• SSHv1/v2
• User authentication for user ID/password
• RADIUS, TACACS+ authentication
• Ethernet type / L4-based ACL (Access Control List)

Multicast

• IGMPv1/v2/v3
• IGMP snooping
• Multicast VLAN Registration (MVR)

MANAGEMENT

Interface

• Serial/Telnet (CLI)
• SNMPv1/v2/v3
• RMON

OPERATING REQUIREMENTS

Operating Temperature

• -20°C ~ 60°C

Storage Temperature

• -40°C ~ 70°C

Humidity

• 5% ~ 90% (non-condensing)
