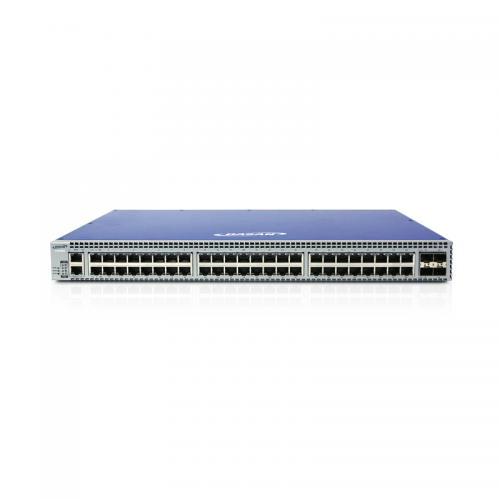

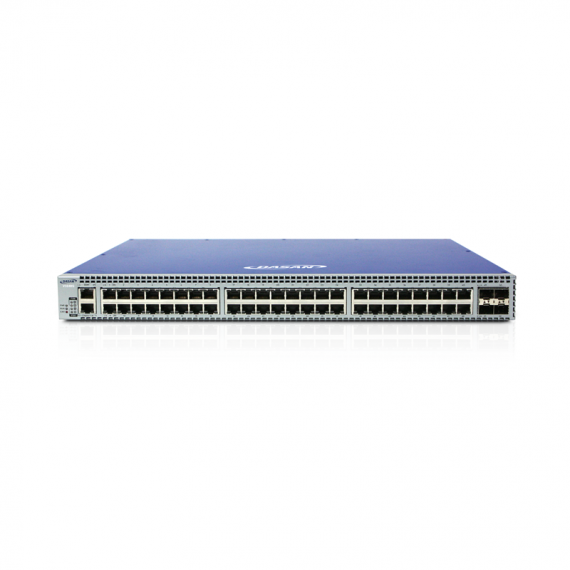

V5648G Enterprise-class Standalone Switch

V5648G is an enterprise-class standalone switch with 1U form factor for data center, campus and branch office environments.

This switch offers 48 1Gigabit Ethernet ports (RJ45) and provides high-bandwidth switching, filtering, and traffic management without delaying data.

V5648G include LLDP (Link Layer Discovery Protocol) which allows for troubleshooting and enhanced network management over multi-vendor environments, as well as LLDP-MED and DHCP Snooping to further expand network security.

V5648G provides 2 PSU (Power Supply Unit) slots that AC power module can be mounted.

This ensures equipment-level reliability with power module redundancy architecture.

DIMENSIONS

Size (W x H x D)

• 440 x 44 x 280mm

POWER

Input

• AC : 100~240VAC (50/60Hz)

Power Consumption

• Max. 55W

INTERFACES

Service Port

• 48 Port  10/100/1000 Base-T(RJ-45)

Uplink Port

• 4 Port  100/1000M Base-X, 10GBase-R combined (SFP/SFP+)

Console Port

• 1 Port  (RJ45)

MGMT Port

• 1 Port  10/100/1000Base-T(RJ-45)

PROTOCOL SUPPORT

L2 Function

• VLAN : 4K

• Link aggregation: Static, LACP

• Spanning Tree Protocol: MSTP, PVRSTP

• Port mirroring

• Storm control

• Flow control

• Jumbo frame: 9K

• GARP/GVRP

• EFM-OAM

L3 Function

• IPv6 support

• 32k entries for IPv4/16k entries for IPv6

• ECMP

• OSPF, BGP, VRRP

• PBR

• VRF

• BFD

Multicast

• IGMP Snooping v2/v3

• IGMP proxy

• PIM-SM, PIM-SSM

QoS

• Smart Buffer

• Support 8 Queue

• 802.1p & DSCP remarking

• SP, WDRR

• ACL Rule

Security

• 802.1x

• RADIUS/Tacacs+

• Martian filter

• DAI

MANAGEMENT

Interface

• DHCP Server, Relay, Option82

• NTP/SNTP

• SNMP v1, v2c, v3

• Telnet, SSH

• Syslog Volatile, Nonvolatile, Remote

• Dual OS

OPERATING REQUIREMENTS

Operating Temperature

• -20°C ~ 60°C

Storage Temperature

• -40°C ~ 80°C

Humidity

• 0% ~ 90% (non-condensing)
