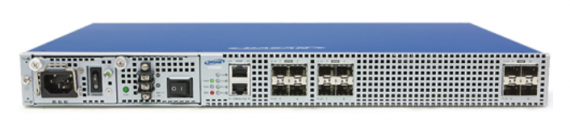

V5804R OLT

As the demand for communication and broadcasting increases, such as the spread of smart devices and digital TVs, communication quality degrades service quality and limits the transmission capacity of existing networks. Therefore, this system provides subscribers with enhanced services based on optimal convergence to provide enhanced services to existing network infrastructure CATV, FTTH networks and subscribers.

With multiple configurations of remote nodes (RN), the V5804R can provide services such as RF overlay broadcast (CATV), Gigabit speed data to many users.

The V5804R consists of a 1 1 / 10GE port, 1 CATV port, 1 cascade port and 4 GPON / CATV ports. The V5804R is an outdoor OLT that enables CATV service with WDM.

DIMENSIONS

Size(W x H x D)

• 382 x 228 x 175mm

POWER

Input Power

• AC type : 50-90VAC

INTERFACES

Service Ports

• 4 GPON/CATV port

Uplink Ports

• 1 1/10GE port, 1 CATV port

• 1 Cascade port

PROTOCOL SUPPORT

Layer 2

• Standard Ethernet bridging

• Port/Subnet/Protocol-based VLAN

• Spanning Tree: STP, RSTP, MSTP

• 802.3ad Link aggregation based on MAC

• Flow Control

Layer 3

• L3 Host(IPv4/IPv6) 1.5K/768

• Static routing

• 1K L2 Multicast

Multicast

• IGMPv1/v2/v3

• IGMP snooping

• IGMP filtering and throttling

• Multicast VLAN Registration (MVR)

GPON

• ITU-T G.984 compliant

• Supports ITU-T G.984.4 ONT Management & Control Interface (OMCI)

• Remote ONT/ONU management

• Automatic ONT ranging

• 4k port-ID and 1k alloc-ID

Security

• Secure Shell (SSH) v1/v2

• 802.1x RADIUS, TACACS+ authentication

• Storm Control

MANAGEMENT

• Serial / Telnet (CLI)

• SNMPv1/v2/v3

• DHCP server, relay agent with option82

• Remote Monitoring (RMON)

• Syslog, Port Mirroring

OPERATING REQUIREMENTS

Operating Temperature

• -10~65°C

Humidity

• 0~95% (non-condensing)
