V5816 OLT
V5816 OLT
  • Model
    V5816
  • Brand
    DASAN
  • Price
    Call
  • Description
    168 Gbps switching capacity
    16 GPON ports, 4 10GE ports and 4 GE (Electric)  ports
    Reliable FTTx service with power redundancy system
    Enhanced QoS services
    IGMP support for IPTV
    Fully Managed via Dasan’s INAS Element Manager
    Increased reliability through power redundancy
    Comfortable network management with SNMPv2 / v3 and RMON
Quantity :
Describe Product

As the number of services using internet communication such as broadband internet, internet phone, and IPTV is increasing, the need for high performance network equipment is increasing. This is not an exception in areas where population density is low and where there are few subscribers. You can plan more effectively in terms of the cost of network deployment.

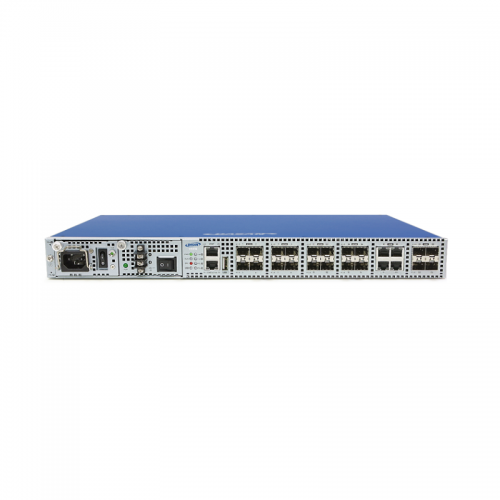

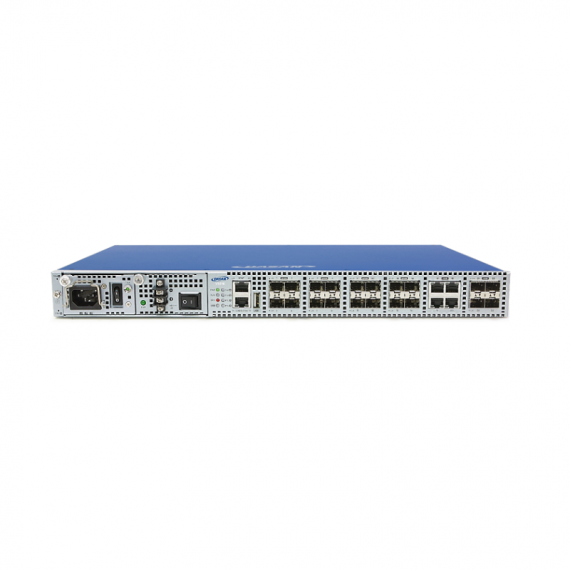

The V5816 is a compact GPON OLT system with 16 GPON ports, four 1G / 10GBase-R ports for uplinks, and four 1000Base-T ports, making it suitable for low-density and FTTx services at low cost.

The V5816 supports Gigabit ports and is applicable to a variety of network environments. In addition, the redundant configuration of the power supply is realized, and the network system is not interrupted, ensuring stable service.

Specifications

DIMENSIONS

Size(W x H x D)

• 440 x 44 x 300mm

POWER

Input Power

• AC type : 100-240VAC, 50/60Hz

• DC type : -48/60VDC

INTERFACES

Service Ports

• 16 GPON(SFP, SC/PC type)

Uplink Ports

• 4 GE Electric Port [100/1000Base-T (RJ45)]

• 4 1G/10GBase-R (SFP+) ports

MGMT Ports

• 1 100/1000Base-TX (RJ45)

Console Port

• 1 Console (RS232)

External Port

• 1  USB2.0

PROTOCOL SUPPORT

Layer 2

• Standard Ethernet bridging

• Port/Subnet/Protocol-based VLAN

• Spanning Tree: STP, RSTP, MSTP

• 802.3ad Link aggregation based on MAC

• Flow Control

Layer 3

• L3 Host(IPv4/IPv6) 1.5K/768

• Static routing

• 1K L2 Multicast

Multicast

• IGMPv1/v2/v3

• IGMP snooping

• IGMP filtering and throttling

• Multicast VLAN Registration (MVR)

GPON

• ITU-T G.984 compliant

• Supports ITU-T G.984.4 ONT Management & Control Interface (OMCI)

• Remote ONT/ONU management

• Automatic ONT ranging

• 4k port-ID and 1k alloc-ID

Security

• Secure Shell (SSH) v1/v2

• 802.1x RADIUS, TACACS+ authentication

• Storm Control

MANAGEMENT

• Serial / Telnet (CLI)

• SNMPv1/v2/v3

• DHCP server, relay agent with option82

• Remote Monitoring (RMON)

• Syslog, Port Mirroring

OPERATING REQUIREMENTS

Operating Temperature

• -20~60°C

Humidity

• 0~90% (non-condensing)
