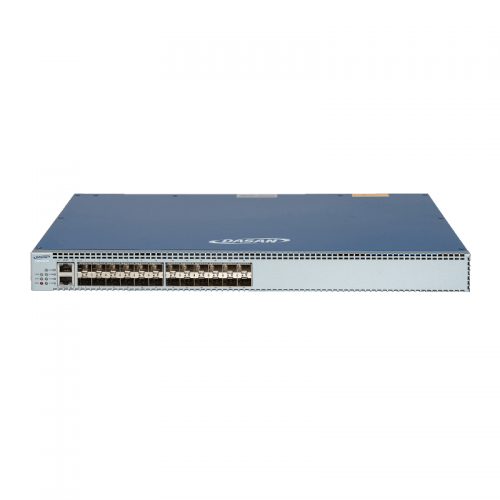

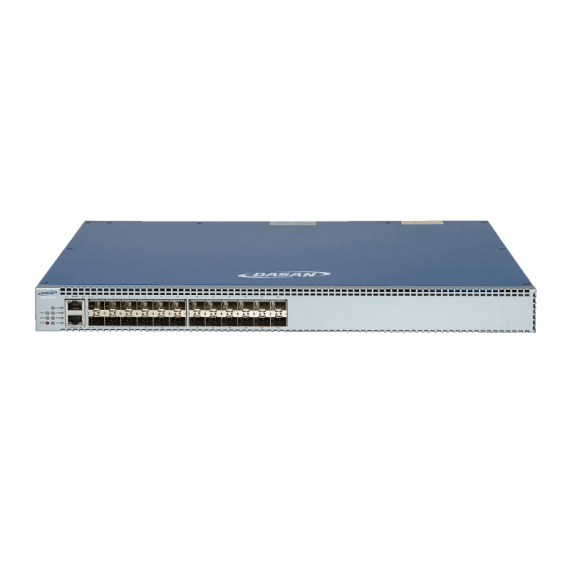

V6824XG Switch
V6824XG Switch
  • Model
    V6824XG
  • Brand
    DASAN
  • Price
    Call
  • Description

    • 640Gbps switching capacity

    • 476Mpps throughput

    • FTTx OLT aggregation solution

    • End-to-end 10GbE data center solution

    • Support Dual power supplies for Redundancy

    • Ultra low latency

    • Up to 24-port 10GbE switch

    • Management via SNMPv1/v2/v3 and RMON

    • User password protected system management

    • Data secured through SSH

    • Enhanced security through RADIUS and TACACS+

    • Remote network management

    • User-friendly CLI via console or telnet

    • L2/L3/L4 H/W based ACL

Quantity :
Describe Product

DZS’s V6824XG is 10GbE switch specifically designed to handle demanding network requirements for low latency network such as data center and for ISP’s FTTx broadband aggregation network .

It enables 10GbE to be deployed in the network, which can significantly improve server utilization and consequently data center power efficiency.

The V6824XG offers 24 10 Gigabit Ethernet ports (SFP+ /SFP). All 10GbE ports allow the maximum flexibility.

This switch provides high-bandwidth switching, filtering, and traffic management without delaying data, and large data center grade buffers to keep traffic moving.

The V6824XG will support Dual PSU(Power Supply Unit) module for non-stop power assurance for your network, and Dual FAN

Specifications

WEIGHT & DIMENSIONS

Size (W x D x H)

• 440 × 44 x 280 mm

POWER

Input

• AC : 100~240VAC (50/60Hz)

• DC : -20~-60VDC

Power Consumption

• Max. 125W

INTERFACES

Service Port

• 24 Port  10GbE (SFP+) or 1G(SFP)

Console Port

• 1 Port  (RJ45 to RS232)

MGMT Port

• 1 Port  10/100/1000Base-T (RJ45)

PROTOCOL SUPPORT

Layer 2

• Standard Ethernet Bridging

• Port/Subnet/Protocol-based VLAN

• Spanning tree (STP/ RSTP/ MSTP)

• 802.3ad link aggregation

• Port Mirroring

• sFLOW / Netflow

• DHCP Server/Relay/Option82

• Link Debounce

Layer 3

• ECMP

• OSPF, BGP, VRRP

• BFD Static/Dynamic(OSPF-single, BGP sinlge, Multi)

• VRF

Multicast

• IGMPv1/v2/v3, PIM-SM/SSM

• IGMP snooping

• Multicast VLAN Registration (MVR)

QoS

• 8 queues per port

• DRR/WRR/SP

• 802.1p/DSCP

• Shaping at Egress

• Remarking

MANAGEMENT

Interface

• SNMP/Telnet/TFTP/SSH/SFTP

• Syslog volatile, nonvolatile, remote

• RMON

OPERATING REQUIREMENTS

Operating Temperature

• 0°C ~ 50°C

Storage Temperature

• -40°C ~ 70°C

Humidity

• 5% ~ 95% (non-condensing)
