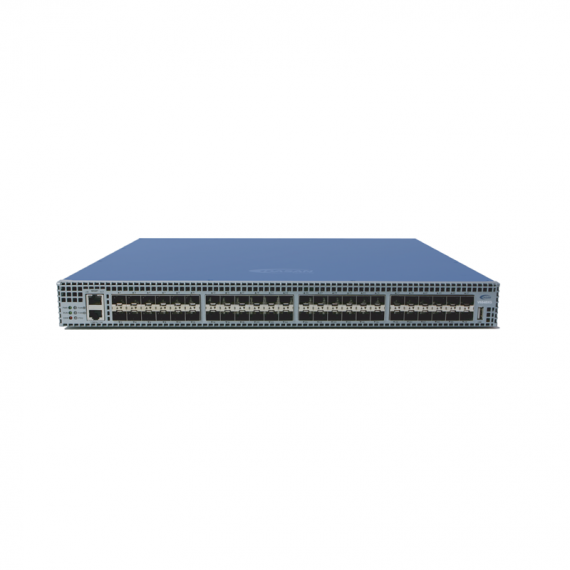

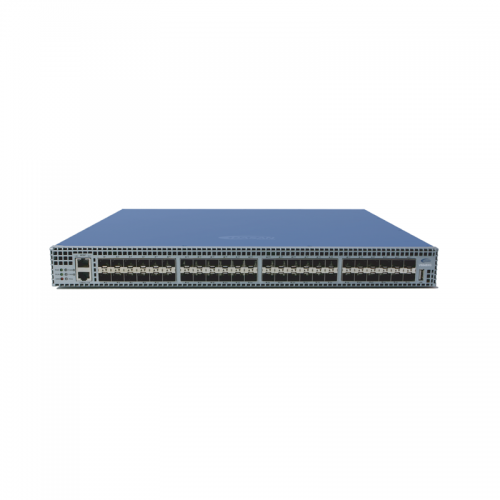

V6848XG 10GbE Switch

V6848XG is 10GbE switch specifically designed to handle demanding network requirements for the data center with low latency.

It enables 10GbE to be deployed in the data center, which can significantly improve server utilization and consequently data center power efficiency.

The V6848XG offers 48 10 Gigabit Ethernet ports (SFP+ /SFP). All 10GbE ports allow the maximum flexibility. This switch provides high-bandwidth switching, filtering, and traffic management without delaying data, and large data center grade buffers to keep traffic moving.

The V6848XG will support Dual PSU(Power Supply Unit) module for non-stop power assurance for your network, and Dual FAN module for cooling system to make your system work with excellent performance.

The V6848XG is ready for the Software-Defined Network (SDN) with OpenFlow 1.0/1.3 support.

WEIGHT & DIMENSIONS

Size (W x H x D)

• 440 × 44 x 418 mm

POWER

Input

• AC : 100~240VAC (50/60Hz)

• DC : -20~-60VDC

Power Consumption

• Max. 160W

INTERFACES

Service Port

• 48 Port  10GbE (SFP+) or 1G(SFP)

Console Port

• 1 Port (RJ45 to RS232)

MGMT Port

• 1 Port  10/100/1000Base-T

PROTOCOL SUPPORT

Layer 2

• Standard Ethernet Bridging

• Port/Subnet/Protocol-based VLAN

• Spanning tree (STP/ RSTP/ MSTP)

• 802.3ad link aggregation

• Port Mirroring

• sFLOW / Netflow

• DHCP Server/Relay/Option82

• Link Debounce

Layer 3

• ECMP

• OSPF, BGP, VRRP

• BFD Static/Dynamic(OSPF-single, BGP sinlge,

Multi)

• VRF

Multicast

• IGMPv1/v2/v3, PIM-SM/SSM

• IGMP snooping

• Multicast VLAN Registration (MVR)

QoS

• 8 queues per port

• DRR/WRR/SP

• 802.1p/DSCP

• Shaping at Egress

• Remarking

MANAGEMENT

Interface

• SNMP/Telnet/TFTP/SSH/SFTP

• Syslog volatile, nonvolatile, remote

• RMON

OPERATING REQUIREMENTS

Operating Temperature

• 0º C ~ 50º C

Storage Temperature

• -40º C ~ 70º C

Humidity

• 0% ~ 80% (non-condensing)
