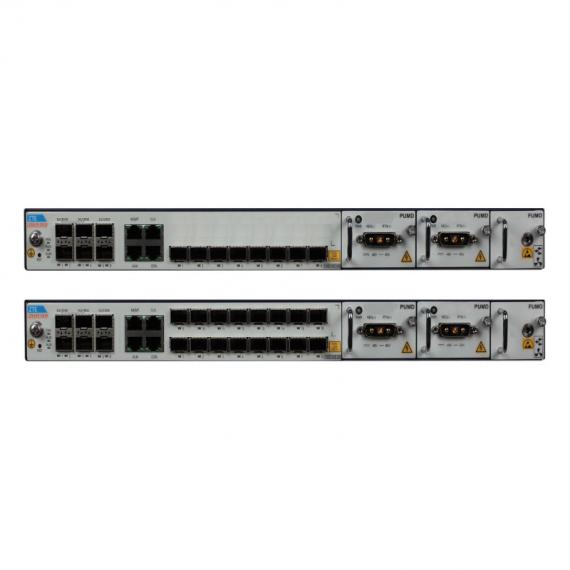

ZXA10 C610E Product

Adapts to low-density areas coverage, remote areas coverage, cost-sensitive coverage, smart park and business buildings access, FTTM, and shares the same site/rack with wireless base stations, outdoor cabinet installation.
Supports series of installation modes, including residential building, equipment room, basement, outdoor cabinet, and pole-mount to reduce the expenditure in equipment room construction and lease payment as well as the maintenance cost.
Carrier-class security protection and high-reliability redundancy design.



Hardware Features

Shelf configuration

Total 4 slots

1 slot for switch control and GPON ports

2 slots for power card

1 slot for fan

System capability

System throughput: 160 Gbps

Subscriber interface

GPON: 16/8 ports per shelf

Uplink interface

4* 10GE/GE optical and 2* GE electric uplink interfaces per shelf

Clock synchronization interfaces

1 * out-of-band management interface

1 * mirroring diagnosis network interface

1 * RS232 serial interface for local management and environment monitoring



GPON

GPON is compliant to ITU G.984.x

Support up to 1:128 (Class C+) optical split ratio

Transceiver power: Class B+/C+/D

Support OLS

Type B optical link protection

Support FEC

Support AES-128 encryption

L2 Features

Access control: MAC filtering, ACL

L2-port: physical Ethernet port, logical Vport and aggregation port, support L2 service and TPID configuration

VLAN : 1:1 VLAN, N:1 VLAN, flexible QinQ, VLAN bridge, TLS VLAN, M-VLAN, VLAN reuse

128k MAC address, MAC address management, static MAC, MAC address aging/learning/query/number limit

Uplink protection: STP/RSTP/MSTP, LACP

QoS Features

Queue & scheduling mechanism: SP, WRR, SP+WRR based on Ethernet ports or PON ports

DSCP labeling and relabeling

Traffic statistics

H-QoS

Stream classification, rate limiting, shaping and priority setting

Congestion avoidance: tail drop, color- based RED, WRED

Configuration of CIR/PIR/CBS/PBS, TrTCM(Two Rate Three Color Marker)

Security Features

Network security

Broadcast/multicast flooding rate limitation

Downstream ARP filtering

Forwarding panel protocol packet rate limit

DHCP anti-spoofing

Anti-DoS attacking

ARP/IP anti-spoofing

IP Source Guard

ACL

Service security

DHCP service security

MAC address anti-flapping

Port separation: Uplink port/User port

Broadcast packets isolation based on Vlan

System security

L4 port disable

CPU protocol packet rate limit and scheduling

OAM Features

Operator security, Multi-privileged operator, FTP/TFTP, ACL

Management protocol and interface: CLI, Telnet ,SNMP v1/v2/v3

Remote firmware download and upgrade

Environment detecting, control and alarm Ø Performance statistics

Over-heat protection

Multicast

IGMP Snooping and proxy (v1/v2/v3)

MLD v1/v2

Multicast VLAN

MVLAN: 4k Multicast VLAN

Channel Access Control (CAC), Preview (PRV) and Call Detail Record (CDR) for IPTV

Global or VLAN protocol enable or disable

Multicast snooping/proxy, router modes

ASM/SSM mode based on IGMPv3 and MLDv2

Less than 20 ms channel zapping delay

SCB multicast forwarding and L3 multicast forwarding

Working Environment

Operating temperature: -40 ℃ ~ 65 ℃

Operating humidity: 5% ~ 95%, non-condensing

Altitude: ≤ 4000 m

Air pressure: 70 kPa ~ 106 kPa

Power Supply

Working voltage: DC, -48 V (±20%) / -60 V (±20%)
