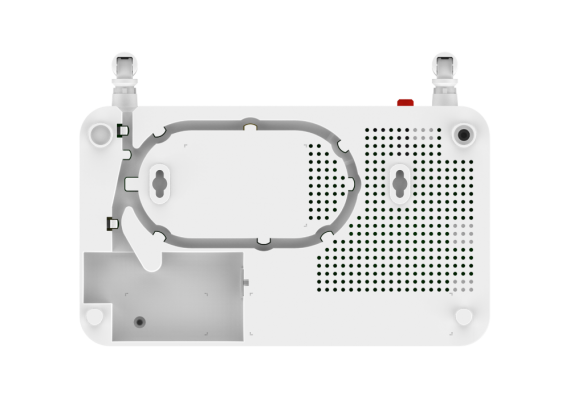

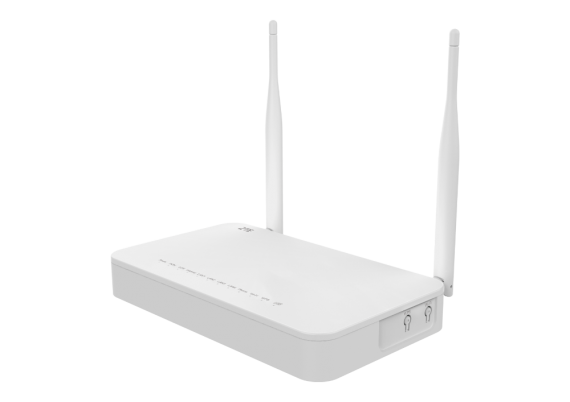

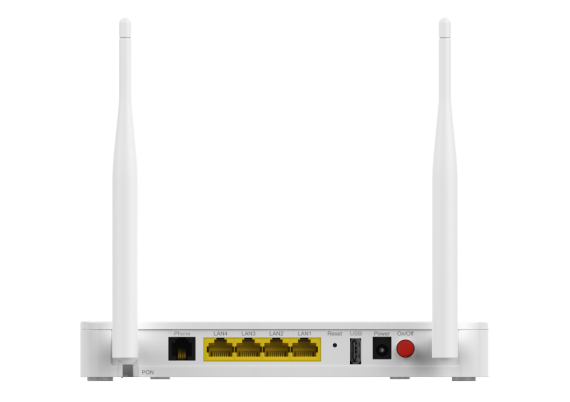

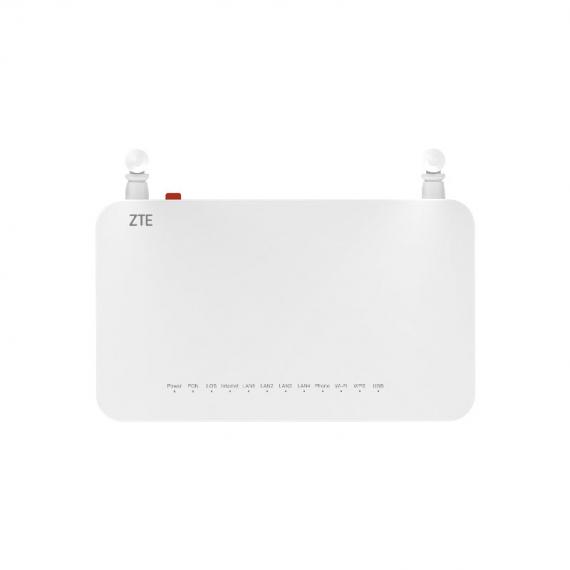

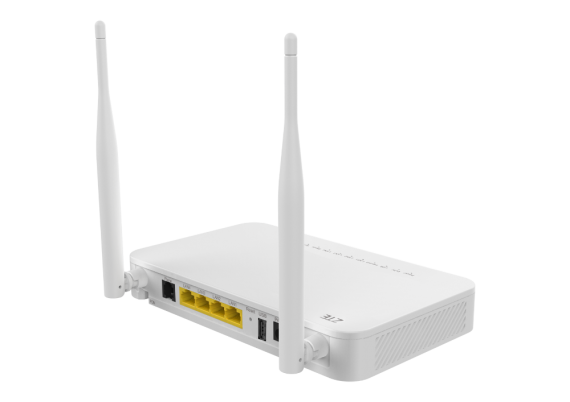

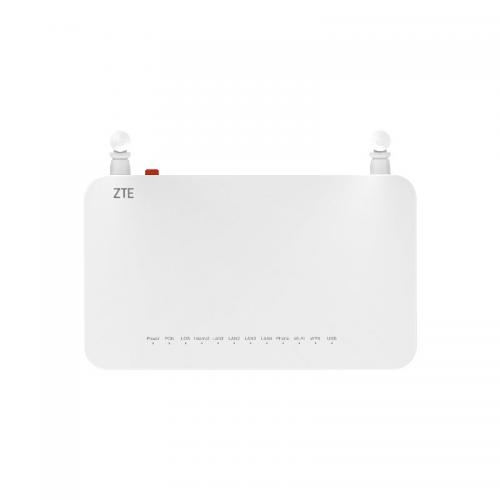

Enriched User-Side Interfaces
Provides 4GE ports for HSI or HD VoD services.
Supports 802.11b/g/[email protected]&802.11a/n/ac@5G dual-band concurrent Wi-Fi with up to Giga-bits speed and excellent indoor coverage.
The users can connect PC, IPTV STB, tablets,and other terminal equipment to the ZXHN F670L to fully enjoy all kinds of internet services.

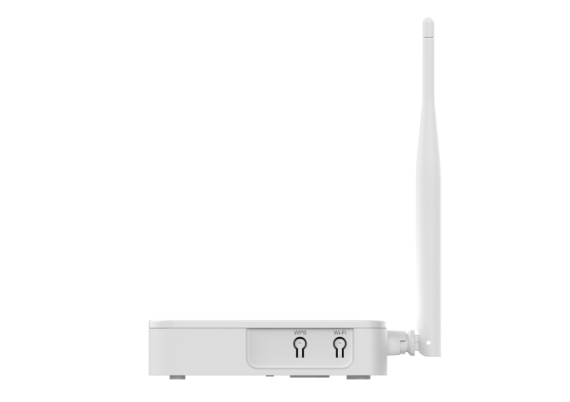

Wi-Fi Access
The users can build a convenient and secure wireless LAN, and access the internet flexibly and reliably.
Complies with the IEEE 802.11b/g/[email protected] (MIMO 2*2) standard.
Complies with the IEEE 802.11a/n/ac@5G (MIMO 2*2) standard, and the 11ac
Supports WPA-PSK, WPA2-PSK, and WPA-PSK/WPA2-PSK authentication to ensure safe and reliable home Wi-Fi access.
System Features
GPON Features
ITU-T G.984.x and ITU-T G.988 compatible
Flexible mapping between GEM port and T-CONT
Priority level queuing and scheduling of the upstream traffic
AES-128 encryption
FEC
Five types of T-CONT
Upstream traffic classification based on VLAN ID and 802.1p
Multicast GEM port
SN, password, and SN+password authentication
Auto-restart and recovery after power supply failure
Bandwidth Allocation
Static bandwidth allocation: ITU-T G.983.1 compliant static bandwidth allocation
Dynamic bandwidth allocation (DBA): Adopts fair DBA policy for the same CoS services during traffic congestion and Dynamic bandwidth status report mode complies with ITU-T G.984.3
GEM Adaptation
GEM mode
GEM frame mapping to GTC payload
Ethernet data frame mapping to GEM frame; Ethernet frame mapping into GEM ports based on VLAN, CoS, or VLAN+CoS
T-CONT
Five types of T-CONT
T-CONT as the basic unit of the upstream service
T-CONT allocation based on the user and CoS; mapping to T-CONT queue based on the CoS value or GEM port
WRR, SP, or WRR+SP T-CONT queue scheduling mode
Operation and Maintenance
Physical layer operations and maintenance (PLOAM) defined in ITU-T G.984.3
OMCI and OMCI extension defined in ITU-T G.984.4 and ITU-T G.988
Optical Link Analysis and Diagnosis
The optical module diagnostic interface analyses the parameters including operating temperature of the optical module, supply voltage, bias current, transmission power, receiving power, etc.
Rogue ONT detection and auto shutdown.
Wi-Fi Features
The Wi-Fi function provides an easy, convenient, flexible, and cost-efficient method for the users to access the internet via the wireless LAN network.
Supports 2.4G(2* 2 MIMO), IEEE802.11b/g/n compliant
Supports 5G(2* 2 MIMO), IEEE802.11a/n/ac compliant
Auto and manual channel selection
Auto and manual rate control
Transmission power control
Four SSIDs per frequency band
Maximum 32 users per frequency band
SSID broadcast enabling/disabling
Access control based on MAC address
WPA-PSK, WPA2-PSK, and WPA-PSK + WPA2-PSK security authentication
WPS
WMM
Ethernet Features
MAC Address Features
MAC address learning
MAC address aging
MAC address learning enable/disable
MAC address learning limit
MAC address binding to a user port. Only controls the input side of the port.
Anti-MAC transferring (spoofing)
- Forbids the MAC addresses learned from a user port to be transferred to other user port before aging.
- Forbids the MAC addresses learned from uplink port to be transferred to the user port.
MAC filtering
- Both the source and destination MAC addresses support the blacklist and the whitelist function.

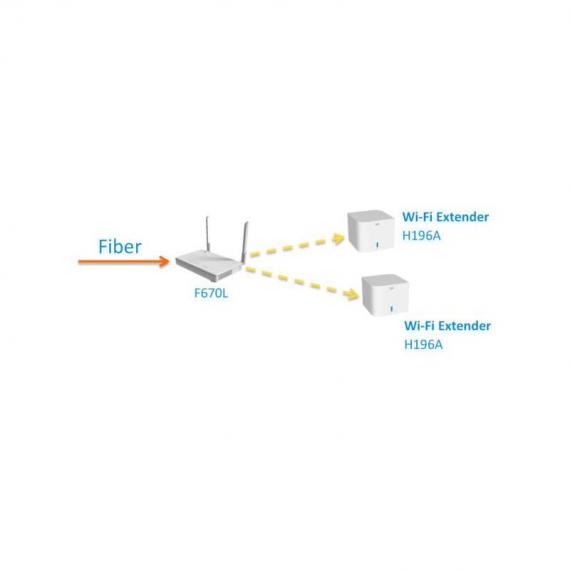

Figure. Network Topology of the ZXHN F670L
