H660GW ONT
H660GW ONT
  • Mã sản phẩm
    H660GW
  • Thương hiệu
    DASAN
  • Giá bán
    Liên hệ
  • Mô tả
    Triple Play Services – IP Video, VoIP, High Speed Internet Access
    GPON
    1 Voice Port
    4 Gigabit Ethernet Port
    VoIP Service
    Multicast Video
    Management – Web GUI
    L3 Routing gateway, NAT, NAPT
Số lượng :
Mô tả sản phẩm

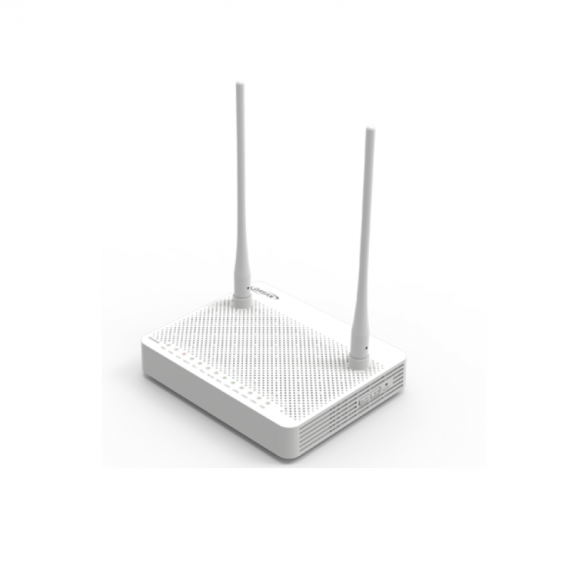

To deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application, the GPON ONT H660GW incorporates interoperability, key customers’ specific requirements and cost-efficiency.

The H660GW provides one GPON uplink port plus four Gigabit Ethernet (10/100/1000Base-T) ports , one USB host interface, wireless interface and two FXS voice ports that enhance the ability to deliver demanding VoIP/Wi-Fi services. Equipped with ITU-T G.984 compliant 2.5G Downstream and 1.25G Upstream

GPON interface, the H660GW supports the full Triple Play of services including voice, video, and high speed internet access.
The H660GW contains both built-in wire-speed L2 switch and L3 routing gateway with port forwarding, NAT and NAPT address translation, PPPoE client support for high speed Internet service.

DỮ LIỆU KỸ THUẬT

DIMENSIONS

Size (W x H x D)

• 160 x 66 x 120mm

POWER

Input Power

• 12V/1A

INTERFACES

Uplink Port

• SC/APC connector for GPON

Service Port

• 2 x FXS

• 4 x RJ45 10/100/1000Base-T

• USB Host Port

• 2×2 11n WiFi

PROTOCOL SUPPORT

GPON

• ITU-T G.984 compliant

• Forward Error Correction (FEC)

• Multiple T-CONTs/GEM ports per device

• Flexible mapping between GEM port and T-CONT

• Dying gasp

Layer 2

• Untagged port configuration

• Standard Ethernet bridging

• MAC address learning with auto aging(Up to 4K MAC addresses)

RGU (L3,Routing mode)

• PPPoE client : one client per RG ONT

• DHCP server / client

• DNS Relay server (DNS relay, DNS transparent)

• NAT and NAPT: 16K session (US 8K, DS 8K)

• Port forwarding

• Stateful packet inspection firewall with ACL

VLAN

• VLAN port filtering

• Destination address port filtering

Multicast

• IGMP snooping

Wi-Fi

• IEEE802.11a/b/g/n/ac compliant

• Multiple SSIDs

• 64/128bit wireless encryption protocol(WEP)

VOICE SUPPORT

• SIP

• Codec Support: G.711, G.723.1, G.729

• 5 REN per port

• T.38 FAX mode

• Echo Cancallation

MANAGEMENT

• Web GUI

• CLI

OPERATING REQUIREMENTS

Operating Temperature

• -5~50°C

Humidity

• 0~90% (non-condensing)

BANDWIDTH/DISTANCE

• GPON interface with Class B+ optics (20km)

• 1310 nm

Launch Power:

• Minimum 0.5 dBm

• Maximum +5dBm

1490 nm

• Sensitivity -28 dBm
