The inside connector is with silicone rubber waterproof ring, to resist moisture and dust.
Applicable to the cable quad-shield of ES59, F59 HEC-2
The inside connector is with silicone rubber waterproof ring, to resist moisture and dust.
Applicable to the cable quad-shield of ES59, F59 HEC-2
No. |
Item |

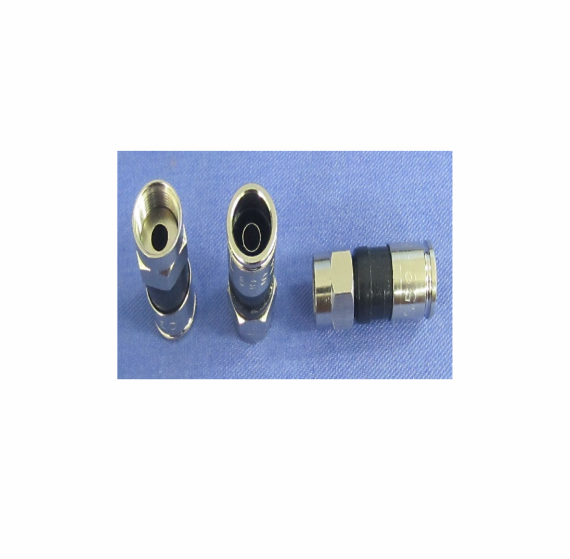

Connector for RG6 cable |
|
1 |
Connector Type |
F-type (British) |
|
2 |
Operating Frequency Range |
5MHz~1000MHz |
|
3 |
Impedance |
75Ω |
|
4 |
Insertion Loss |
5MHz~300MHz |
≤0.05dB |
5 |
300MHz~1000MHz |
≤0.1dB |
|
6 |
Return Loss |
5MHz~300MHz |
≥30dB |
7 |
300MHz~1000MHz |
≥30dB |
|
8 |
Screening Attenuation |
≥100dB |
|
9 |
Contact Resistance |
Inner Conductor |
≤ |
Outer conductor |
≤ |
||
10 |
Insulation Resistance(DC 500V) |
≥ |
|
11 |
Withstanding Voltage |
AC 1.5KV, 1min, no breakdown |
|
12 |
Water and fog resistant(SCTE standard: ANSI/SCTE 60 2004 red dye,120 hours,high-low temperature cycle,test condition please check Tips 1) |
No leakage |
|
13 |
Water immersion test (24h) |
Insulation resistance≥ |
|
14 |
Resistance to damp heat test |
Withstand voltage |
≥800V |
(40℃±2℃,93%±3%,24h×21) |
|||
Insulation resistance |
≥ |
||
(40℃±2℃,93%±3%,24h×21) |
|||
15 |
High temperature insulation resistance |
≥ |
|
(85℃±5℃,16h) |
|||
16 |
Low temperature insulation resistance |
≥ |
|
(-40℃±5℃,2h) |
|||
17 |
Working torque strength of connector |
≥3.39 Newton-meters |
|
18 |
(after finished the compression) |
≤ |
|
19 |
Connect strength of connector and cable (Double shield cable) |
≥20kgs |
|
20 |
Universality of connector |
The same model connector can be used in F59 HEC-2 cable with double, triple and quad-shield. |
|
21 |
Operating temperature |
-40℃ - +60℃ |
|
Tips 1: SCTE standard: ANSI/SCTE 60 2004 Resistance to damp heat test method. Environmental temperature: upper limit 60± |
Install Size: Unit: mm
