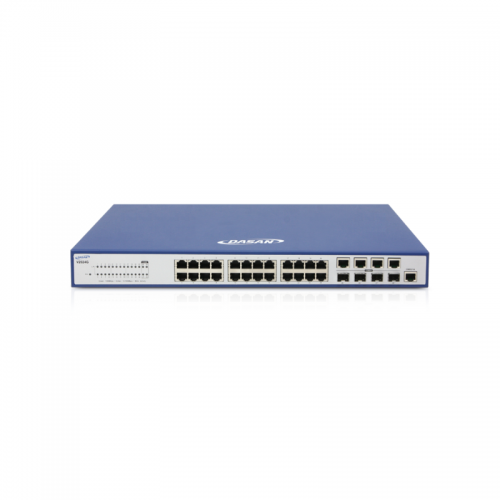

V2024G Gigabit Ethernet Switch

The V2024G Gigabit Ethernet Switch is a 1 RU singleboard Layer 2 switch that is optimized to provide operators with a cost-effective solution for expanding networks.

Offering 24 10/100/1000Base-T interface ports and four Combo uplink ports, the V2024G provides the flexibility needed for a variety of network architectures.

For the uplink interface ports, there are 4-Ports 1000Base-X (SFP) and 4-Port 1000Base-T (RJ45) Combo type.

V2024G delivers 56Gbps switching capacity with 41.6Mpps throughput.

V2024G extensively supports QoS, security ACL (Access Control List), intelligent services such as multicast management, as well as 10K jumbo frame processing, network expansion as Q in Q support.

In addition, RADIUS, TACACS +, etc. Support for 802.1x security by encrypting data sent over SSH has increased further.

V2024G enables an efficient network deployment and provide differentiated services.

WEIGHT & DIMENSION

Size (W x H x D)

• 440 x 44 x 230 mm

POWER

Input

• AC : 100-240VAC (50/60Hz)

Power Consumption

• Max. 14W

INTERFACES

Service Port

• 24 Port 10/100/1000Base-T (RJ45)

Uplink Port (Combo)

• 4 Port 1000Base-X (SFP)
• 4 Port 1000Base-T (RJ45)

Console Port

• 1 Port RS232(RJ-45)

MGMT Port

• 1 Port 10/100Base-TX(RJ-45)

PROTOCOL SUPPORT

L2 Features

• Standard Ethernet Bridging
• Port/Subnet/Protocol Based VLAN
• 8K MAC Address Entries
• 4K VLANs
• Jumbo Frame 10K
• STP/RSTP/MSTP/PVSTP/PVRSTP
• 802.3ad link Aggregation
• Port Mirroring

Security & QoS

• Ethernet Type/ L4-Based ACL
• SSH v1/v2
• 4 Queues per Port
• Conditional Rate Limiting

Multicast

• IGMP v1/v2/v3
• IGMP Snooping
• Multicast VLAN Registration(MVR)

MANAGEMENT

Interface

• Serial/Telnet(CLI)
• SNMP v1/v2/v3
• Multicast
• RMON

OPERATING REQUIREMENTS

Operating Temperature

• 0℃ ~ 50℃

Storage Temperature

• -40℃ ~ 70℃

Humidity

• 5% ~ 95% (non-condensing)
