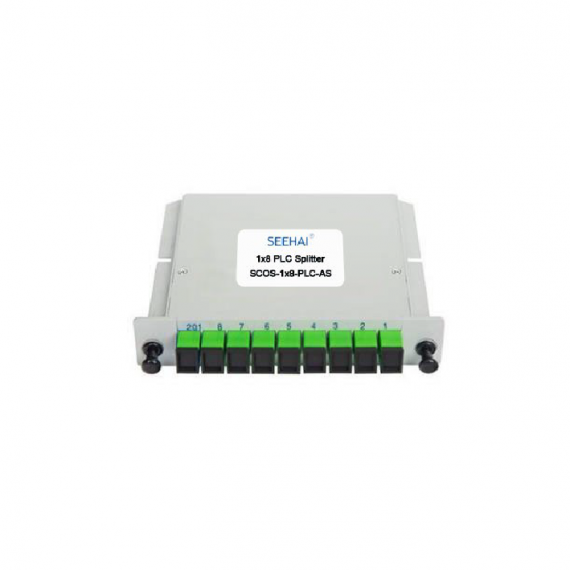

1xN PLC Splitter

Model

SCOS-1*NrPLC-AS
Brand

Seehai
Price

Call
Description

This product is widely used in CATV data network, optical communication system, fiber testing equipment, fiber to the home, fiber to the building and other integrated network.

Quantity :

Describe Product

Product feature

The loss is insensitive to the optical wavelength and can meet the transmission needs of different wavelength

Uniform optical distribution, can be evenly distributed to customer

Compact structure, it can install to the current case directly, it’s no need large installed space.

Good stability, all-fiber structure, low polarization related consumption, low return loss;

The shell is made of high quality ABS material with strong impact resistance, and the product can withstand extreme high and low temperatures.

Specifications

Product standard

Item	Specifications
	1x2	1x4		1x8	1x16		*132**	*164**
Operation Wavelength（nm）	1260~1650
Test Wavelength（nm）	1310,1550
Insertion Loss（dB）	≤4.1	≤7.5		≤10.5	≤13.8		≤17.1	≤20.4
Uniformity（dB）	≤0.8	≤0.8		≤0.8	≤1.0		≤1.0	≤1.0
Polarization dependent loss（dB）	≤0.25	≤0.25		≤0.3	≤0.3		≤0.3	≤0.35
Return loss（dB）	PC		UPC			APC
	≥45		≥50			≥55
Directivity（dB）	≥55
Operation Temperature（℃）	-40~85
Storage Temperature（℃）	-40~85

Package size of 1xN plug splitter

Item	Unit		Specifications
			1x2	1x4	1x8	1x16	*132**	*164**
Package size	Length	mm	130			130	130	130
	Width		100			100	100	100
	Height		25			50	102	206
Fiber type	G657A1（On the basis of actual demand）
Connector type - IN	--		On the basis of actual demand
Connector type - OUT	--		On the basis of actual demand
Adapter type - IN	--		On the basis of actual demand
Adapter type - OUT	--		On the basis of actual demand
Snap button	--		On the basis of actual demand
