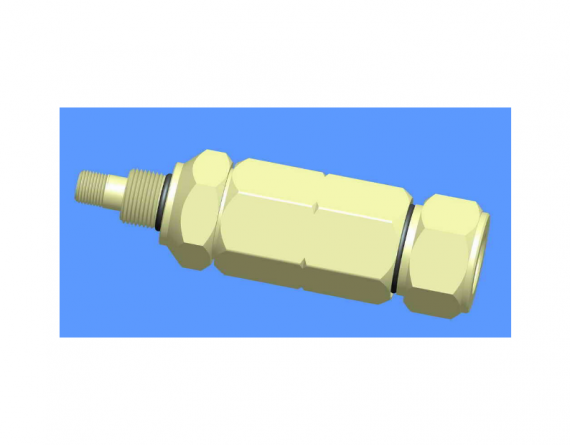

540 Female connector (Double Waterproof)
540 Female connector (Double Waterproof)
  • Model
    SHTZM-540-BAFF-QR-B
  • Brand
    Seehai
  • Price
    Call
  • Description

    Body is made by high grade aluminum alloy with chromate conversion coating for excellent corrosion resistance .

    Cable socket is in high quality copper or equivalent, high elasticity, tin plate, with 360 degree / 4 sides contacted to the center conductor of QR540 cable at one end, and RG11 / RG6 cable at another end.
    The main insulator adopt teflon with good electrical indicators.
    High quality waterproof rubber coil with exellent performance of anti-aging and tear resistant

    Product surface is carved with manufacturers,production date and mark for applicative cable.

Quantity :
Describe Product

Structure:

Three sections of hexagonal with the same size, easy to install.

Double waterproof structure on the cable connection, more reliable for waterproof.

Rainproof design with good ability of waterproof and weather resistance.

Thread intensify design, high durability

Dip coating solid membrane protective agent. Screw smoothly and won’t be deadlock.

Suitable for QR540 JCA cable.

Lengthen cylindrical structure in front. Hot shrinkage is more convenient and reliable when using heat shrink tube.

The front of the F port structure adopt ring round PIN, suitable for φ 0.55 to φ1.2mm center conductor insertion. Clamping force over than 100g to 200g. Reliable connection and signal conduction.

Specifications

Specifications:

Waterproof sealing: More than 1 kg/ cm2

Bandwidth: 5 MHz to 1 GHz.

Insertion Loss ≤ 0.1 dB.

Return Loss: ≥28 dB .

Impedance: 75ohms.

Shielding effectiveness≥110 dB.

Conform to I class standard of China SARFT Network Acess
