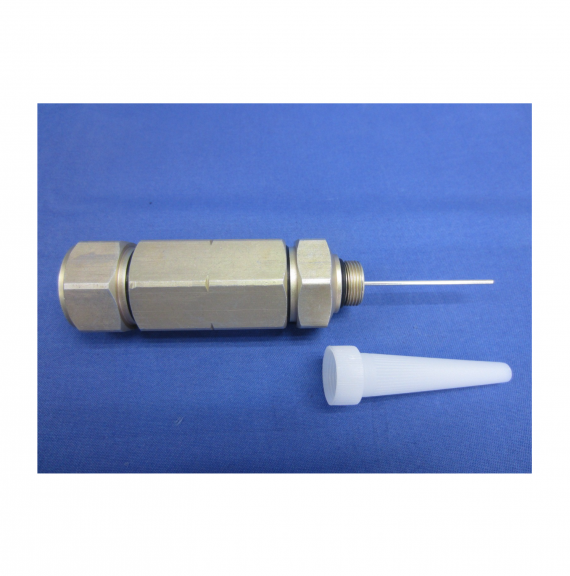

Pin connector for QR540 JCA cable (Double Waterproof)
Pin connector for QR540 JCA cable (Double Waterproof)
  • Model
    SHTZT-540-CH-QR
  • Brand
    Seehai
  • Price
    Call
  • Description

    High quality Aluminum alloy, precision machining, surface oxidation treatment, good anticorrosion.

    The main insulator adopts teflon with good electrical indicators.
    High quality waterproof rubber coil with excellent performance of anti-aging and tear resistant

    O-rings are ultraviolet and ozone resistant EPDM for maximum durability.

    Product surface is carved with manufacturers, production date and mark for applicative cable

Quantity :
Describe Product

Structure:

Three sections of hexagonal with the same size, easy to install.

Double waterproof structure on the cable connection, more reliable for waterproof.

Rainproof design with good ability of waterproof and weather resistance.

Thread intensify design, high durability

Dip coating solid membrane protective agent. Screw smoothly and won’t be deadlock.

Suitable for QR540 JCA cable.

Specifications

Specification:

Waterproof sealing: More than 1 kg/cm2

Bandwidth: 5 MHz to 3 GHz

Insertion Loss : ＜0.1 dB, Return Loss: ＞30dB.

Impedance：75Ω

Shield effectiveness: 5-300MHz＞100dB; 300-3000MHz＞90dB 

Operating temperature range: -30℃ to +60℃
