High-Pass Filter
High-Pass Filter
  • Model
    SHPF-6585-F
  • Brand
    Seehai
  • Price
    Call
  • Description

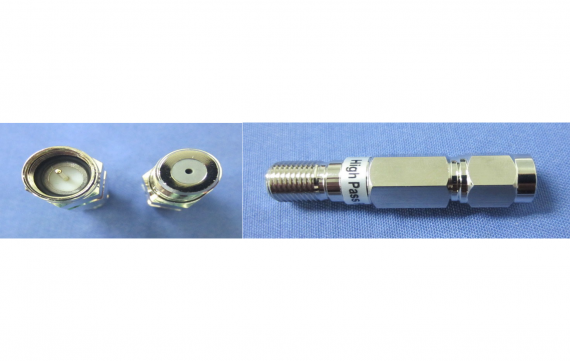

    All-in-one brass structure with nickel-plated surfa

    Small size fit for indoor use.

    Can be installed separately, or as accessory to optical nodes, amplifier or splitters & taps. Damp proof. Be perfect in restraining feedback noise to terminal customers in bidirectional network transformation.

    Standard British F connector (F Male to F Female)

Quantity :
Describe Product

Bandwidth: 65-85MHz. Customizable according to customers' network demands.

High isolation on rejection channel, low insertion on pass channel.

Good perforance on electromagnetic shielding and waterproof.

Specifications

NO.

Item

Frequency (MHz)

Specification

1

Insertion Loss

(dB)

85-90

90-110

110-1218

≤1.2

≤1.0

≤0.5

2

Return Loss

(dB)

85-200

200-1218

≥16

≥18

3

Rejection

(dB)

5-65

≥42

4

Connection

3/8-32UNEF

5

Impedance

75Ω
