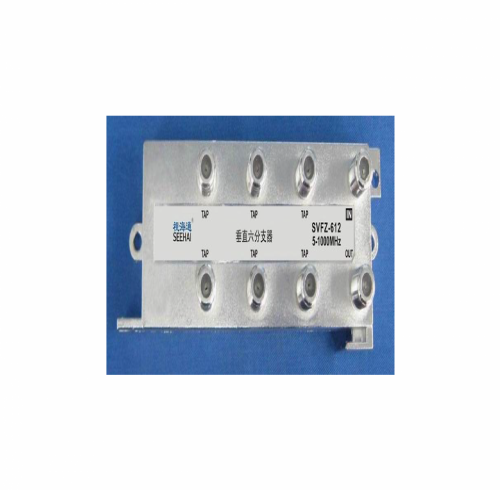

Specification:
|
NO |
ITEM |
Frequency (MHz) |
Value of tap(dB) |
|||||||||
|
-10 |
-12 |
-14 |
-16 |
-18 |
-20 |
-22 |
-24 |
-26 |
||||
|
1 |
Tap Loss （dB） |
5-65 65-750 750-1000 |
±0.75 ±1.0 ±1.5 |
|||||||||
|
2
|
Insertion Loss (dB) |
5-65 65-550 550-750 750-1000 |
≤3.8 ≤4.2 ≤4.2 ≤4.6 |
≤3.5 ≤3.8 ≤3.8 ≤4.2 |
≤2.8 ≤3.0 ≤3.0 ≤3.5 |
≤2.2 ≤2.5 ≤2.5 ≤2.8 |
≤1.6 ≤1.8 ≤1.8 ≤2.0 |
≤1.2 ≤1.5 ≤1.5 ≤1.8 |
≤1.0 ≤1.2 ≤1.2 ≤1.5 |
≤1.0 ≤1.0 ≤1.2 ≤1.5 |
≤1.0 ≤1.0 ≤1.2 ≤1.5 |
|
|
3 |
Isolation (OUT-TAP) (dB) |
5-65 65-550 550-750 750-1000 |
≥26 ≥26 ≥26 ≥24 |
≥26 ≥26 ≥26 ≥24 |
≥27 ≥26 ≥26 ≥24 |
≥30 ≥30 ≥27 ≥25 |
≥30 ≥30 ≥28 ≥25 |
≥30 ≥30 ≥30 ≥26 |
≥30 ≥30 ≥30 ≥26 |
≥34 ≥34 ≥34 ≥28 |
≥34 ≥34 ≥34 ≥30 |
|
|
4 |
Isolation (TAP-TAP) (dB) |
5-65 65-550 550-750 750-1000 |
≥26 ≥30 ≥26 ≥24 |
|||||||||
|
5
|
Return Loss IN/OUT (dB) |
5-65 65-550 550-750 750-1000 |
≥16 ≥18 ≥18 ≥16 |
|||||||||
|
6 |
Return Loss TAP (dB) |
5-65 65-550 550-750 750-1000 |
≥18 ≥20 ≥20 ≥18 |
|||||||||
|
7 |
Connector |
3/8-32UNEF |
||||||||||
|
8 |
RFI(dB) |
≥100 |
||||||||||
|
9 |
Impedance |
75Ω |
||||||||||
|
|
|
|||||||||||
