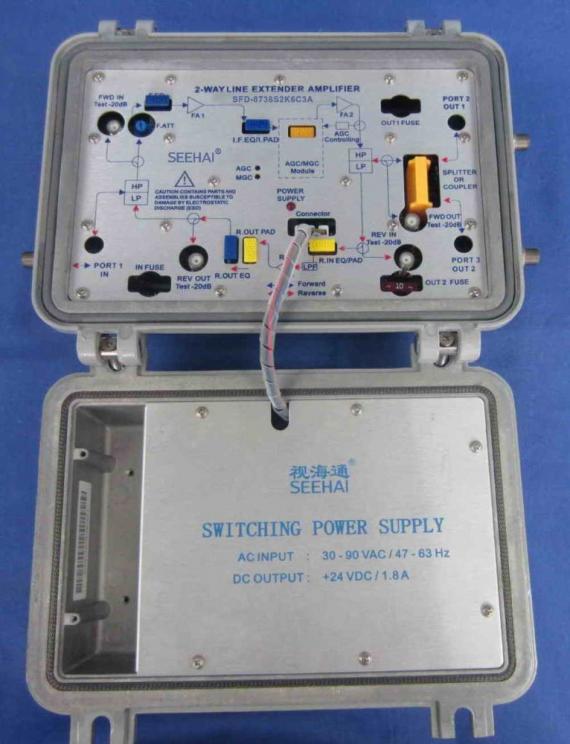

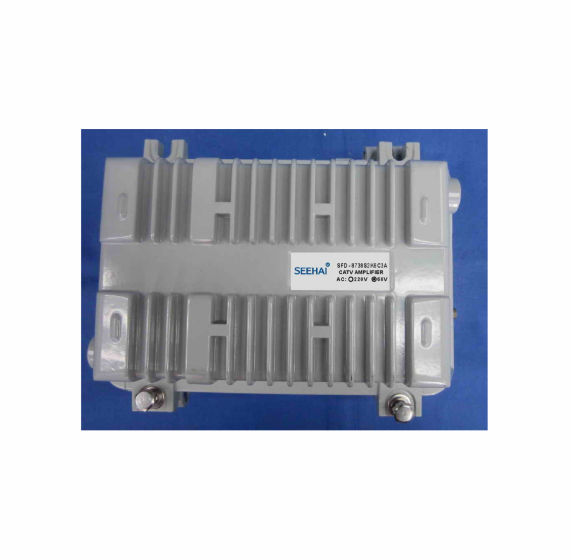

870MHz Two way amplifier(With AGC control function)
870MHz Two way amplifier(With AGC control function)
  • Model
    SFD-8738S2K6C3-A
  • Brand
    Seehai
  • Price
    Call
  • Description

    High level output.

    Use imported or high quality domestic module for the positive and reverse channel. Stable and reliable performance.

    Die cast aluminum alloy housing, surface passivation treatment, beautiful and firm, corrosion resistance.

    Waterproof design, strict lightning strike structure, use the rainproof adapter, suitable for outdoor use.

    Internal (or external) positive, reverse input, output. -20dB independent test port.

    Diplex filter, equalizer, attenuator modular, plug-in design, easy to choose or replace for upgrade according to user’s needs at any time.

    Independent installation design for power supply, use 60VAC power supply.

    With AGC control function.

Quantity :
Describe Product

Principle block diagram：

870MHz Two way amplifier(With AGC control function)



Specifications

Technical specifications：

NO.

Parameter

Reference standard

1. RF Performance—forward

1.1

Pass band frequency

82 to 870 MHz

1.2

Nominal gain

38dB

1.3

Noise figure

＜8 dB

1.4

Slop

3 ~ 12dB

1.5

Test point

-20 dB±1 dB

1.6

Output level

52/38.5 dBmV

1.7

Channel load

75 NTSC simulation +75 number

1.8

C/CTB

≤-65dB

1.9

C/CSO

≤-65dB

1.10

XMOD

≤-65dB

1.11

Flatness

±0.75

1.12

Return loss

≤-16dB

2. RF Performance—reverse

2.1

Pass band frequency

5-65MHz

2.2

Gain

20

2.3

Test point

-20dB±0.5dB

2.4

Noise figure

≤6dB

2.5

Output level

40dBmV

2.6

Channel load

4-6 PAL Analog channel

2.7

XMOD

≤-65dB

2.8

C/CTB

≤-75dB

2.9

C/CSO

≤-75dB

2.10

Flatness

±0.75 dB

2.11

Return loss

≤-16dB

3. Other Performance

3.1

Work temperature

-40 to + 70 ℃

3.2

Supply voltage

35-95VAC

3.3

Power

31W

3.4

Hum modulation

≤-60dB

3.5

Overcurrent

10A
