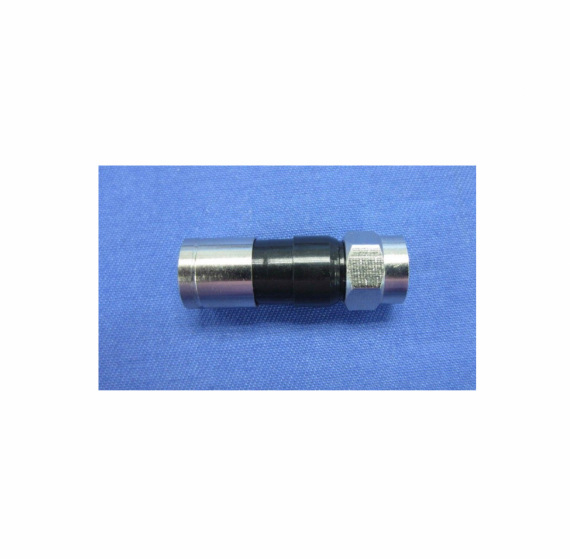

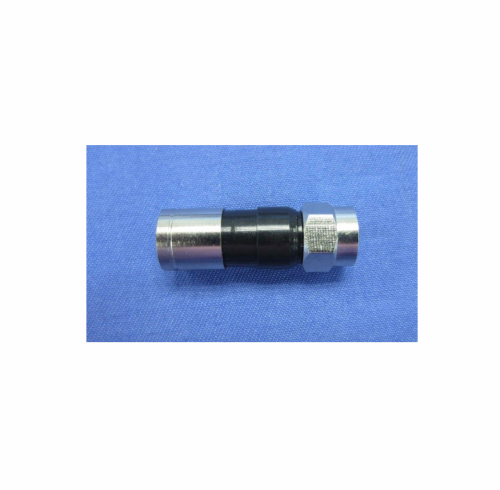

F-male connector for RG6 cable (outdoor type ,be used by compression tool)

Model

SFJT-RG6CP-E
Brand

Seehai
Price

Call
Description

Good specification to waterproof, prevent from corrosion.
Connect with RG6 and -5 cables.
Metal part : made by Nickel plated brass for excellent corrosion resistance.

Plastic part: made by high quality, long lifetime POM (Polyoximethylene)

Quantity :

Describe
Product
Technical
Specification
Customers'
Comment

Describe Product

Install to cable using compressing tool (the same compression tool for installing the F-male connector for RG6 cable, compress type, for both outdoor and indoor use).

Recognition: engraved with manufacturer's brand name / logo or model no. on connectors, and printed with manufactured date (month – year) on packaging.

Specifications

Specification:

NO.	Item		F-male connector for RG6 cable
1	connector type		F-male 3/8-32UNEF
2	Working frequency		5MHz～1000MHz
3	Impedance		75Ω
4	Insertion loss	5MHz～300MHz	≤0.05dB

5		300MHz～1000MHz	≤0.1dB
6	Return loss	5MHz～300MHz	≥28dB
7		300MHz～1000MHz	≥26dB
8	RFI		≥100dB
9	Contact conductor	Internal conductor	≤10mΩ
		External conductor	≤5mΩ
10	Insulating resistance(DC500V)		≥1000MΩ
11	Withstanding voltage		AC1.5KV，1min，No breakdown
12	Antifogging（SCTE standard: ANSI/SCTE 60 2004 red dyes，120h，High and low temperature circulation，Test conditions please turn to Note 1 below this form）		No leakage
13	Sub test (24h)		Insulation resistance≥200MΩ,withstanding voltage meet the requiement of the item 11on this form
14	Normality of oisture and heat	Withstanding voltage	≥800V
			(40℃±2℃,93%±3%,24h×21)
		Insulation resistance	≥250MΩ
			(40℃±2℃,93%±3%,24h×21)
15	High temp. insulation resistance		≥500MΩ
			(85℃±5℃,16h)
16	Low temp. insulation resistance		≥1000MΩ
			(－40℃±5℃,2h)
17	Torsional intensity of connector		≥3.39N·m
18	Connection ability between connector and cable (2 layers shielded cable)		≥20Kg
19	General use for connector		The same model connector can be used in 2 layers,3 layers,or 4 layers RG6 shielded cable
20	Work temp.		-40℃ - +60℃
Note1： SCTE standard: ANSI/SCTE 60 2004 the test way for antifogging. Test temperature: Max. 60±1℃, Min.1.7±1℃. Put the test piece into the test conditions for 120h ,and circu lated from the Max temp. to Min. temp. for 10 times..Every circulation must be kept upon thd high-point or below low-point for 300±20 minutes.
