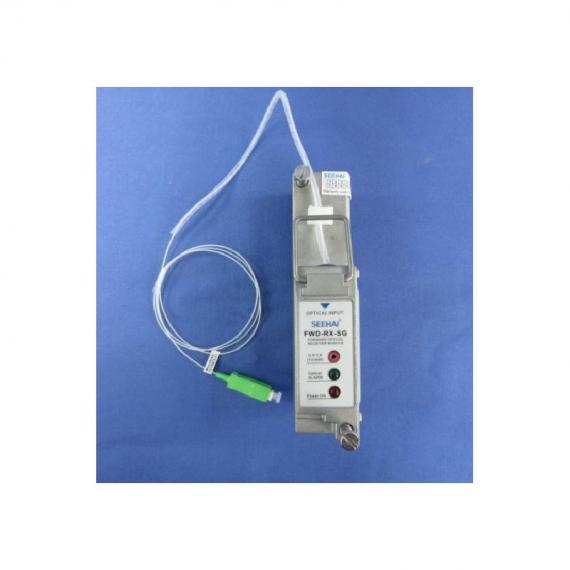

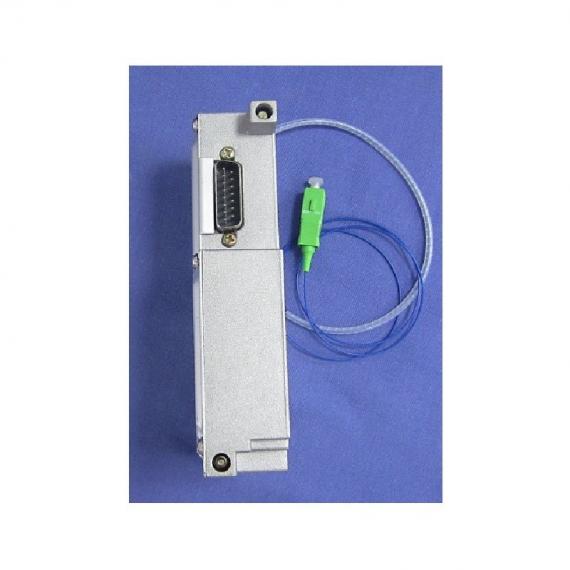

Forward Path Optical Receiver Module for 4 port 870MHz (Outdoor Optical Node)
FWD-RX-SG-870M 02
FWD-RX-SG-870M
Forward Path Optical Receiver Module for 4 port 870MHz (Outdoor Optical Node)
FWD-RX-SG-870M 02
FWD-RX-SG-870M
  • Model
    FWD-RX-SG-870M
  • Brand
    Seehai
  • Price
    Call
  • Description

    45 - 870MHz Operational Bandwidth.

    InGaAs PIN Photodiode + CATV GaAs or GaN Push Pull Hybrid Amp. Module, brand from G7/EU countries, brand from G7/EU countries

Quantity :
Describe Product
Module type, fitting into Optical Node with 4 RF active outputs.
Specifications

Specifications

Optical parameters

Wavelength

1290 ~ 1600nm

Input Optical Power

-4 to +2dBm

Return Loss

≥ 45dB

Connector

SC/APC (sleeve material: ceramic)

RF output power

≥ 28dBmV / 1 channel (@ -1dBm optical input)

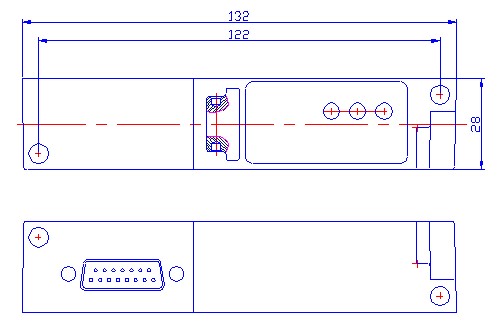

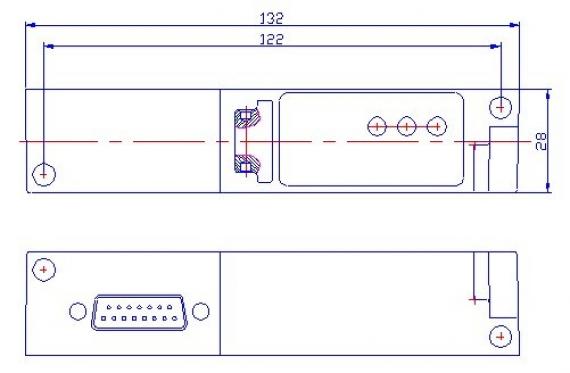

Install Size：   unit:mm

FWD-RX-SG-870M_03
