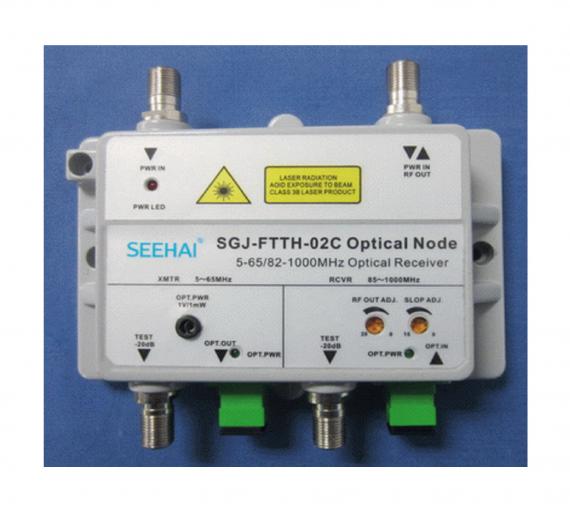

For FTTH analog & digital signals transmission & receiving.
82-1000 MHz forward bandwidth，5-65 MHz return bandwidth.
Adopting Low noise RF amplifier for low optical input level.
Compact size and easy installation .
Aluminum die-cast housing for good heat disappearance.
12 VDC input from remote or local power supply.
Lightning Arrestors at all RF Ports.

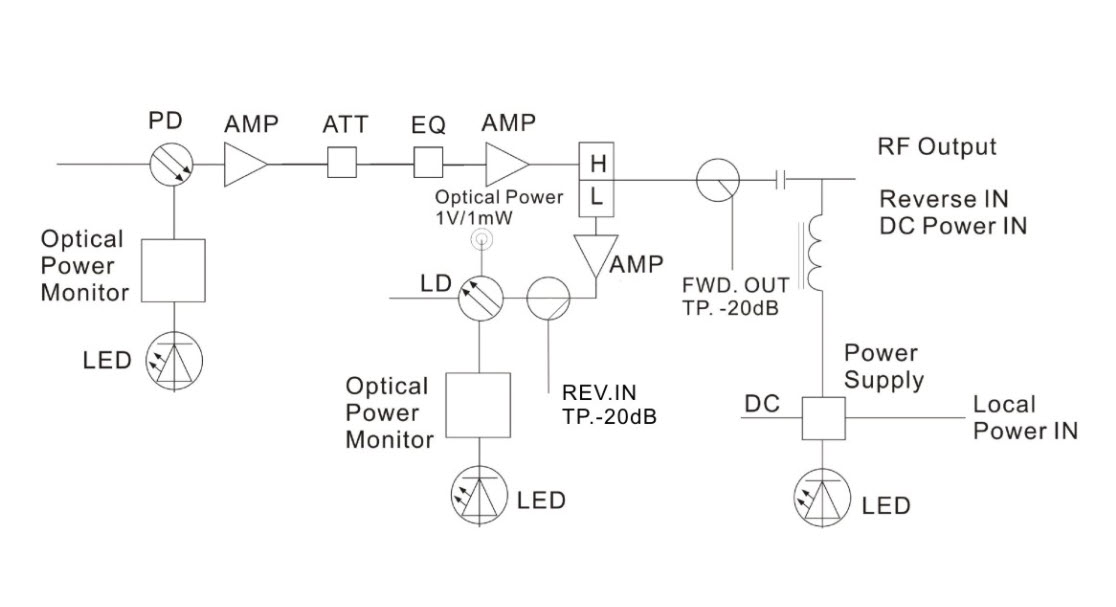

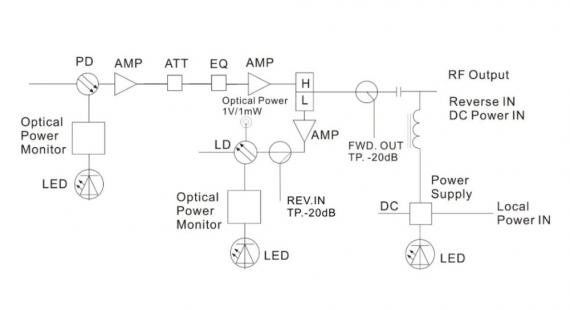

Block Diagram
|
1. Forward path |
|
|
RF parameter |
|
|
Bandwidth |
82 ～ 1000MHz |
|
Flatness |
≤ ± 0.75dB |
|
Output level @1000MHz |
≥ 42dBmV (-1 ～ +2dBm Optical Input, 12 dB slope @ 82 ～ 1,000MHz) |
|
RF Amplifier Technology |
2 stage amplification, push-pull MMIC at output stage. All components are from USA brand names |
|
Return loss |
≥ 16dB (82 ～ 1000MHz) |
|
Impedance |
75Ω |
|
Gain control range |
0 ～ 20dB, adj. |
|
Slope |
0 ～ 15dB, adj. |
|
Test point |
-20 ± 0.75dB |
|
Output port |
3/8-32 F |
|
Optical parameters |
|
|
Receiver Type |
InGaAs PIN Photodiode, from Japan or UK brand names |
|
Wavelength |
1200 ～ 1600nm |
|
Return loss |
≥ 45dB |
|
Input power |
-4 ～ +2dBm |
|
Connector |
SC/APC (ferrule material: ceramic) |
|
Link performance |
|
|
|
C/N ≥ 51dB ( 0dBm input) C/N ≥ 50dB ( -1dBm input) C/N ≥ 49dB ( -2dBm input) |
|
CSO ≥ 63dB,CTB ≥ 63dB |
|
|
10km Fiber, Input level 20dBmV/channel |
|
|
77 NTSC or 60 PAL channels, and 450MHz Digital channels |
|
|
2. Return path |
|
|
Wavelength |
1310±10nm or 1550±10nm, as customer request |
|
Laser Type |
Uncooled DFB Laser with isolator, from Japan or UK brand names |
|
Optical output |
0.5, 1.6 or 2mW (as customer request) |
|
Optical return loss |
≥ 45dB |
|
Optical power test point |
+ 1V/mW |
|
Optical Connector |
SC/APC (ferrule material: ceramic) |
|
RF Parameters |
|
|
Bandwidth |
5 ～ 65MHz |
|
RF Amplifier Technology |
Reverse MMIC amplifier, from USA brand names |
|
RF return loss |
≥ 16dB |
|
Flatness |
≤ ±0.75dB |
|
Input level |
15 ～ 25 dBmV |
|
|
|
|
Return Link performance (15 dBmV full range or 2 video channels, 25 dBmV/channel) |
|
|
NPR |
≥ 44dB |
|
Dynamic Scope |
≥ 24dB |
|
3.Other parameters |
|
|
Operation Temp |
-10°to +50℃ |
|
Storage Temp |
-10°to +60℃ |
|
Dimensions |
128D × 78W × 31H(mm) |
|
Weight |
0.4Kg |
|
Voltage Power |
12VDC |
|
Consumption |
6W (Max) |
|
Power Adapter |
External AC/DC switch-mode power adaptor, input: 100 - 240 VAC, 50/60 Hz, output: 12VDC/1A |

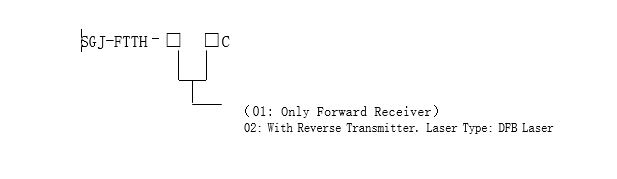

Buyer Guide

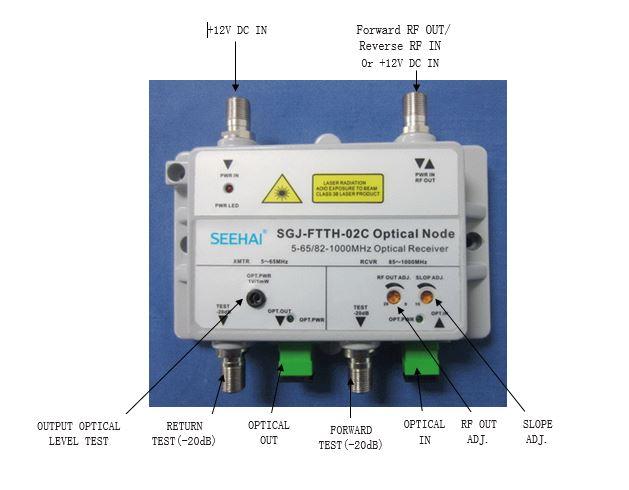

Installation Diagram
