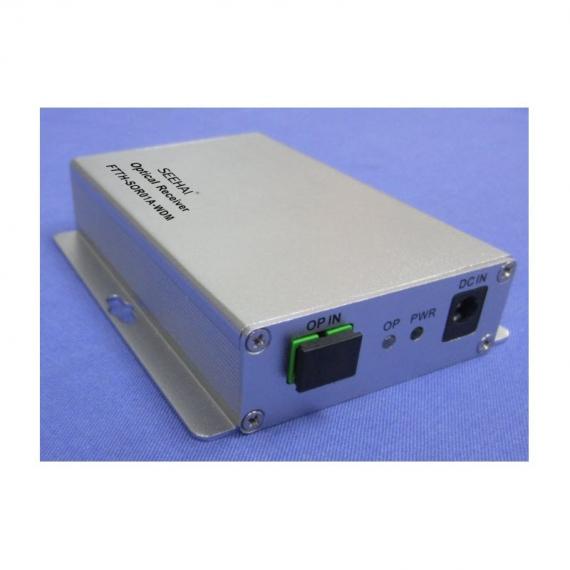

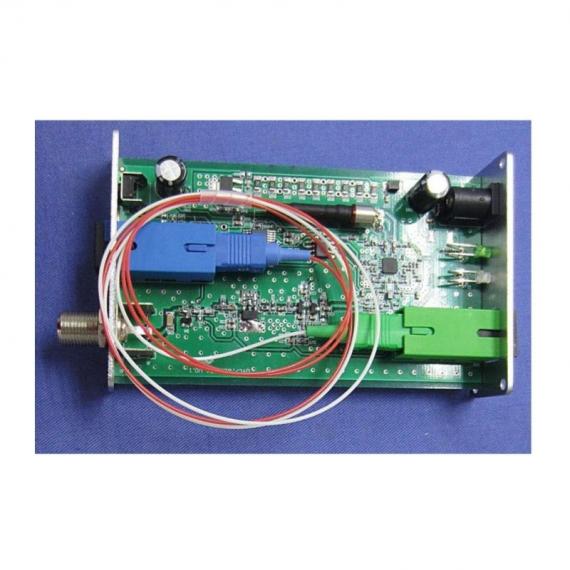

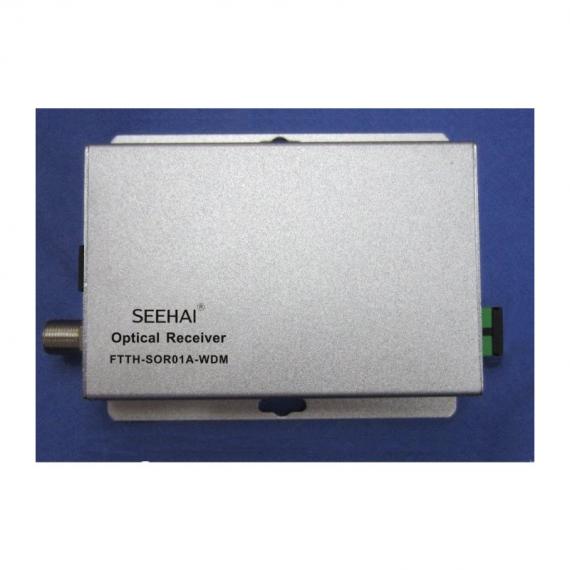

Describe Product

This product is FTTH (Fiber to the Home) optical receiver, with low power optical receiving and optical control AGC technique, which can satisfy the demand of FTTH, and also can match with ONU or EOC for realizing the integration of three networks. With WDM, 1550nm CATV to be photoelectric converted for RF output, 1490/1310 nm PON signals directly pass, can transfer CATV+EPON by only one pc FTTH.

The product is compact, easy installation, and an ideal product for FTTH CATV network.

Specifications

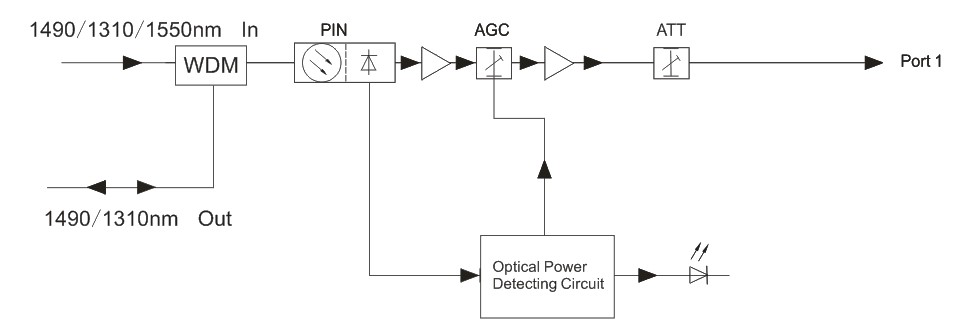

Block Drawing

Technical Specification

Optical Parameters
Receiver Type	Photodiode with brand name from G7/EU countries
Amplifier Type	MMIC with brand name from G7/EU countries
Input Wavelength (nm)	1310, 1490, 1550
CATV Wavelength (nm)	1550 ± 10
Output Wavelength (nm)	1310, 1490
Channel Isolation (dB)	≥ 40 (between 1310/1490nm and 1550nm)
Input optical Power (dBm) (1550nm)	-10 ~ -2, or larger range
Optical return loss (dB)	≥ 45
Fiber connector	SC/APC @1550nm is applied for both IN and OUT
RF Parameters
Bandwidth (MHz)	82-862, or larger range
Output level (dBmV)	≥ 20 per channel, with optical input: -7 ~ -2 dBm
Flatness (dB)	≤ ± 0.75
Return loss (dB)	≥ 14
Impedance	75 Ω
RF output connector	At least 1 output port, F female type
Link performance
77 NTSC / 59 PAL analog channels	CNR ≥ 50 dB (0 dBm optical input) or CNR ≥ 49 dB (-1 dBm optical input) or CNR ≥ 48 dB (-2 dBm optical input)
77 NTSC / 59 PAL analog channels	CSO ≥ 60 dB, CTB ≥ 60 dB

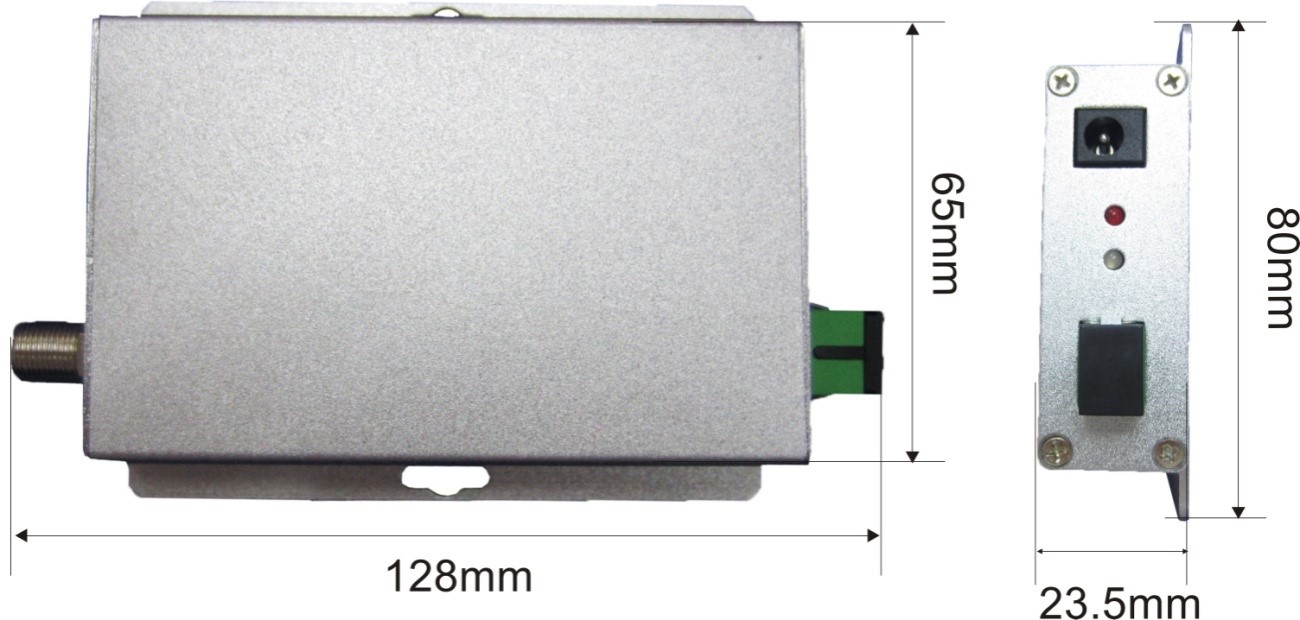

Others

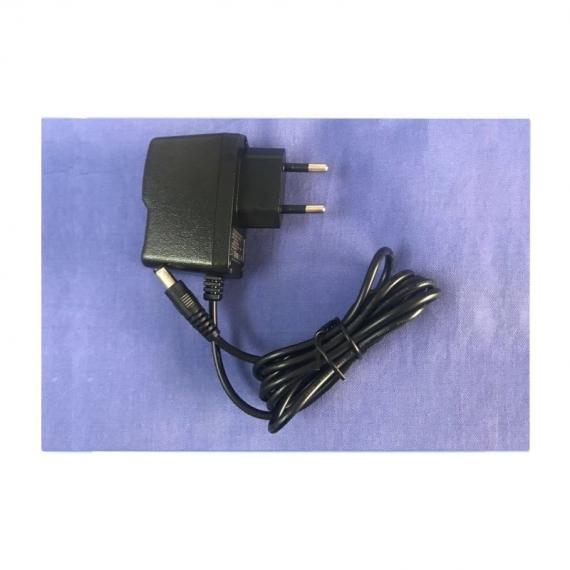

Power supply requirements	- Using the external AC/DC adapter, switching mode power supply, with AC input: 100-240 VAC, 50/60Hz, or larger Electrolytic capacitor for output with withstand voltage must be at least 2 times of output voltage DC output power: be at least 1.5 times of actual power consumption of respective end device Output ripple: ≤ ±1.5% International standard of efficiency, level V
Operational Temp. (^oC)	0 ~ 40, or larger
