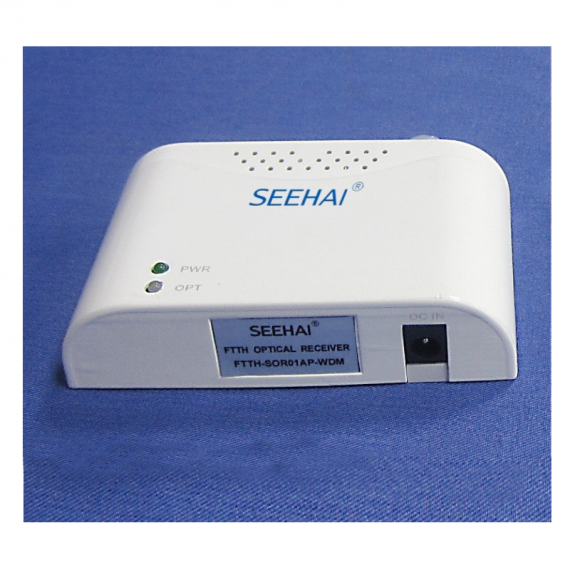

FTTH Optical Receiver with WDM (FTTH-SOR01AP-WDM)

FTTH Optical Receiver with WDM (FTTH-SOR01AP-WDM)

Model

FTTH-SOR01AP-WDM
Brand

Seehai
Price

Call
Description

Optical receiving range: -18dBm~+2dBm；

AGC control to keep constant output level in different optical input power

RF output level: ≥80 dBμV @-10dBm optical input power；

The plastic housing with durable structure and good appearance, it is suitable for household and adopts special heat dissipation design. The detector uses metal shielding cover, it is safe and reliable.

LED indicator for showing the status of power supply and optical signal.

Quantity :

Describe
Product
Technical
Specification
Customers'
Comment

Describe Product

This product is FTTH (Fiber to the Home) optical receiver, with low power optical receiving and optical control AGC technique, which can satisfy the demand of FTTH, and also can match with ONU or EOC for realizing the integration of three networks. With WDM, 1550nm CATV to be photoelectric converted for RF output, 1490/1310 nm PON signals directly pass, can transfer CATV+EPON by only one pc optical fiber.

The product is with compact structure, it is easy to install, and this is an ideal product for FTTH CATV network

Specifications

Specification

Item	Unit	Specification
Receiver Type		Photodiode with brand name from G7/EU countries
Amplifier Type		MMIC with brand name from G7/EU countries
CATV Wavelength	nm	1550±10
PON Wavelength	nm	1310/1490
Optical Input Power	dBm	-18～+2
Optical AGC Range	dBm	-11～+2
CATV Optical input port		SC/APC
PON Optical reflect port		SC/APC
RF connector		F-Female
Frequency	MHz	47～1000
Flatness	dB	≤±1.25
RF Output Level (in AGC range)	dBμV	≥80
Output RF resistance	Ω	75
Output Return Loss	dB	≤-12
C/N	dB	≥43	-9dBm Optical input power, 60 PAL channels
C/CSO	dB	≥55
C/CTB	dB	≥55
MER	dB	≥31	-15dBm optical input power
Power Supply Voltage	AC\V	100～240 (Input of adaptor)
Input Voltage	DC\V	+5V/12V（Input of product, output of adaptor）
Power Dissipation	W	≤2
Operating Temperature	℃	-10～+50
Dimension	mm	95×60×23 (L×W×H)

Block Diagram

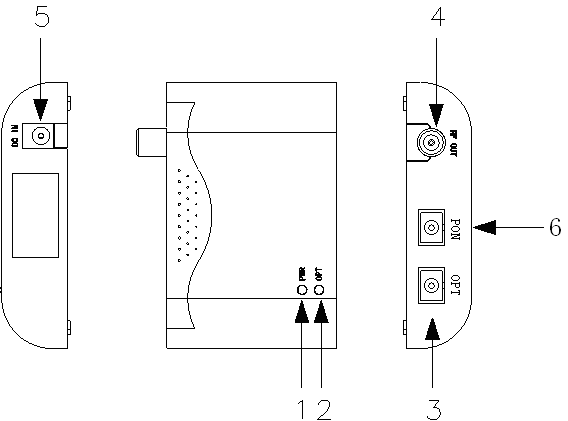

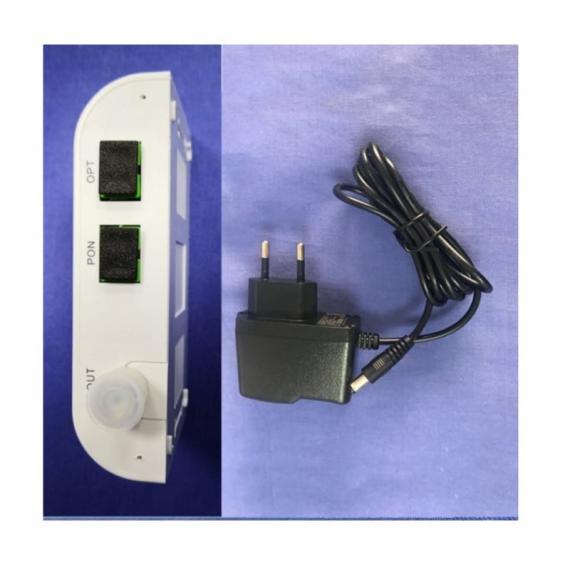

Interface introduction

1. LED indicator for power supply. If power supply works normally, the LED indicator will be green; if fails or power off, the indicator will be off.
2. LED indicator for optical receiving power. When optical receiving power is higher than -12dBm, the LED indicator will be green. When optical receiving power is lower than -12dBm, the LED indicator will be red.
3. CATV optical input port: SC/APC.
4. RF output port. Use coaxial cable to connect with the RF input port of TV or STB.
5. Power input port. Connect with the attached power adaptor.
6. PON optical output port: SC/APC.
