Describe Product

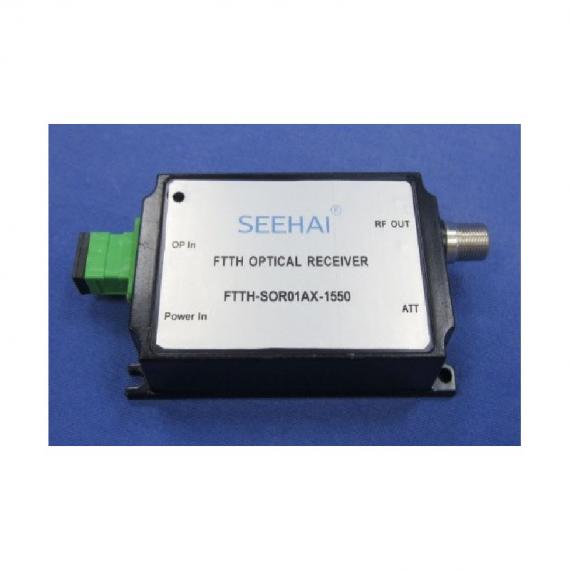

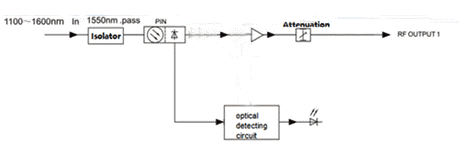

This product is FTTH (Fiber to the Home) optical receiver, with low power optical receiving, which can satisfy the demand of FTTH CATV receiving. It can separately and effectively receive 1550nm wavelength of CATV signal, with optical isolator, to satisfy the demand of only allowing 1550 wavelength received, and filtering out other wavelength optical signals.

The product is compact, easy installation, and an ideal product for FTTH CATV network.

Specifications

Technical Specification

Optical Parameters
Receiver Type	Photodiode with brand name from G7/EU or Korea countries
Amplifier Type	MMIC with brand name from G7/EU or Korea countries
Input Wavelength (nm)	1260 ~ 1600
Operating Wavelength (nm)	1550 ± 20
Input optical Power (dBm)	-10 ~ -2, or larger range
Optical return loss (dB)	≥ 45
Fiber connector	SC/APC
RF Parameters
Bandwidth (MHz)	82-862, or larger range
Output level (dBmV)	≥ 20 per channel, with optical input: -7 ~ -2 dBm
Flatness (dB)	≤ ± 0.75
Return loss (dB)	≥ 14
Impedance	75 Ω
RF output connector	At least 1 output port, F female type
Link performance
77 NTSC / 59 PAL analog channels	CNR ≥ 50 dB (0 dBm optical input) or CNR ≥ 49 dB (-1 dBm optical input) or CNR ≥ 48 dB (-2 dBm optical input)
77 NTSC / 59 PAL analog channels	CSO ≥ 60 dB, CTB ≥ 60 dB
Others
Power supply requirements	- Using the external AC/DC adapter, switching mode power supply, with AC input: 100-240 VAC, 50/60Hz, or larger Electrolytic capacitor for output with withstand voltage must be at least 2 times of output voltage DC output power: be at least 1.5 times of actual power consumption of respective end device Output ripple: ≤ ±1.5% International standard of efficiency, level V
Operational Temp. (^oC)	0 ~ 40, or larger
