Application:
Line monitoring
WDM system
Telecommunication network system
Triple-Play FTTH

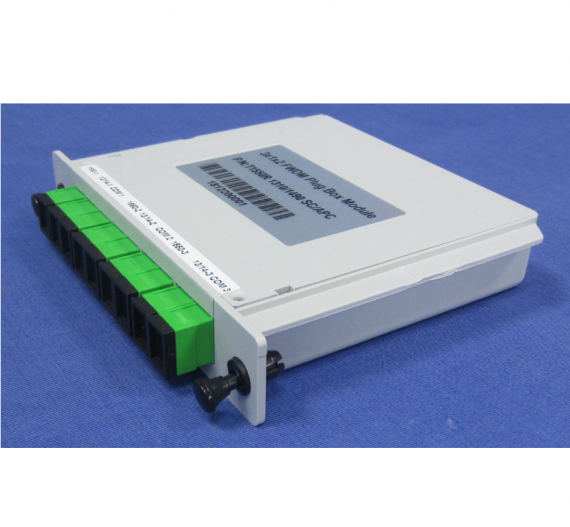

Describe Product
Specifications
Specification：
|
Type |
|
|
|
|
|
|
|
Pass band Central Wavelength (nm) |
1550 |
|
|
Reflective Band Central Wavelength (nm) |
1310&1490 |
|
|
Pass band Wavelength (nm) |
1520-1620 |
|
|
Reflective Band Wavelength (nm) |
1260-1360 &1480-1500 |
|
|
Insertion Loss (dB) |
Transmission 1310nm |
≤0.60 |
|
Reflection 1490nm |
≤0.40 |
|
|
Reflection1550nm |
≤0.40 |
|
|
Isolation (dB) |
Transmission 1490nm |
>50 |
|
Transmission 1550nm |
>35 |
|
|
Reflection 1310nm |
>20 |
|
|
PDL (dB) |
≤0.1 |
|
|
Return Loss (dB) |
≥60 |
|
|
Directivity (dB) |
≥55 |
|
|
Connector |
SC/APC |
|
|
Fiber Length (m) |
0.5 or1.0 |
|
|
Operating Temperature (℃) |
-10~+70 |
|
|
Storage Temperature (℃) |
-40~+85 |
|
|
Dimensions (mm) |
130*100*25 |
|
|
Fiber Type |
SM9/125 |
|
