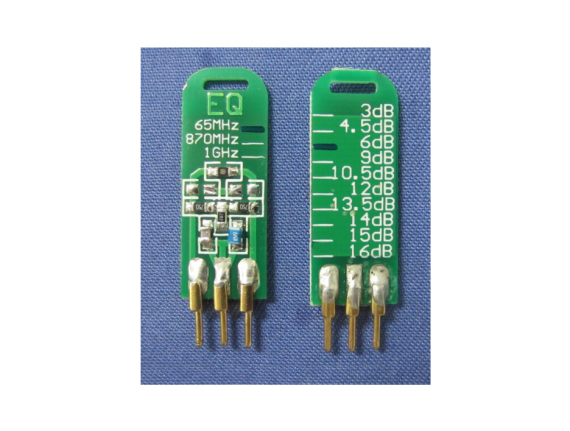

Plug-in Equalizer
Plug-in Equalizer
  • Model
    EQ1G-B-**dB
  • Brand
    Seehai
  • Price
    Call
  • Description

    * φ1.0mm Copper pin with gold plating.

    Standard pin spacing 3.2mm.

    High quality PCB.

    Transfer bandwidth is 82-1000MHz.

    Used for 1GHz Amplifiers, 1GHz ONU 2 port and 4 port
Quantity :
Specifications

Specification:

NO.

ITEM

Frequency（MHz）

Nominal Value（dB）

4.0

6.0

7.0

8.0

10

12

14

15

1

Attenuation Value（dB）

82MHz@1000 MHz -**dB

-4.5

±0.75

-6.0

±0.75

-7.5

±0.75

-9.0

±0.75

-10.5

±0.75

-12

±0.75

-13.5

±0.75

-15

±0.75

2

Insertion Loss（dB）

1000

＞-1

3

Return Loss（dB）

82-1000

≤-16

* Custom design attenuation value.

                                                       Plug in Equalizer

Install Size： Unit：mm

                       Plug in Equalizer
