Specification：
|
NO. |
ITEM |
Specification |
|||
|
1 |
Input |
Input Voltage Range |
40-95VAC |
||
|
Rated Input Voltage |
60 |
||||
|
Input Frequency(Hz) |
50/60 |
||||
|
Input Current(max) |
＜4.0 |
||||
|
Inrush Current |
＜50@60VAC |
||||
|
Efficiency(%) |
≥75% |
||||
|
2 |
Output |
Output Voltage Range(VDC) |
±24 |
+12 |
±5 |
|
Load Current(MIN)(A) |
0.1 |
0.1 |
0.1 |
||
|
Load Current(A) |
2.5 |
2.0 |
0.5 |
||
|
Voltage Accuracy(VDC) |
±2% |
±4% |
11.4-12.4 |
||
|
Line Regulation(%) |
≤±1 |
≤±2 |
≤±1 |
||
|
Load Regulation(%) |
≤±2 |
≤±2 |
≤±2 |
||
|
Ripple(mV) |
≤20 |
||||
|
Noise(mV) |
≤100 |
||||
|
Temperature coefficient |
±0.03% ℃ |
||||
|
Output Power(W) |
86.5 |
||||
|
3 |
Protections |
Over load protection |
110%~170% of rated power |
||
|
Short circuit protection |
Auto recovery |
||||
|
Over voltage protection |
115%~135% of rated output voltage(V1) |
||||
|
4 |
Reliability and Safety |
Reliability |
MTBF Min70,000h |
||
|
Safety |
Meet EN60950 |
||||
|
6 |
Environmental |
Operating temperature |
-25℃~65℃ |
||
|
Storage temperature |
-40℃~80℃ |
||||
|
Cooling method |
Convection |
||||
Install Size:Unit: mm

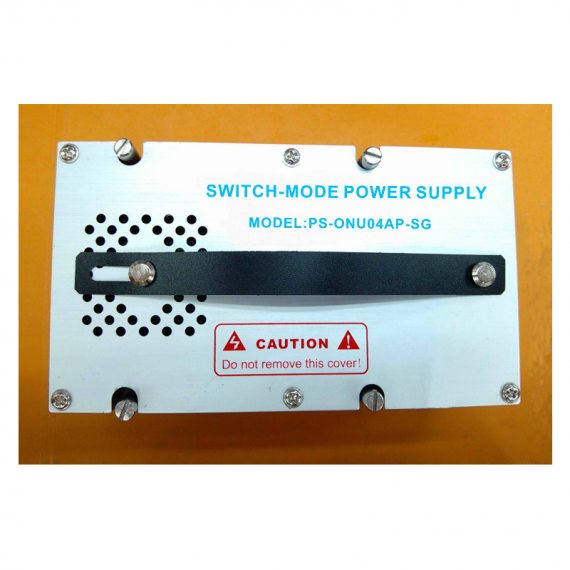

Power supply for 4-port optical node
