SC-PLC-AL-2810-AS/AS

Model

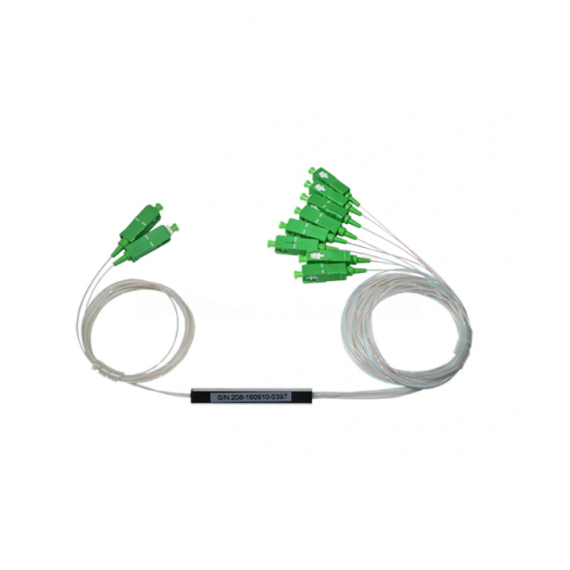

Optical Fiber Splitter FTTH 2x8
Brand

Seehai
Price

Call
Description

The dual-planar waveguide optical splitter is processed by special quartz glass optical waveguide technology and reliable precision alignment coupling system packaging technology. Low cost, small size and high

reliability provide a more cost-effective solution for optical power distribution. It is mainly used in the optical network system to connect the transmitter and the terminal to achieve uniform splitting of optical signals.

Quantity :

Describe Product

Features:

Low excess loss

Low PDL

Wide Operation Wavelength

High stability and reliability

High channel counts

Applications:

FTTX Systems

LAN,WAN and Metro Networks

Analog/Digital Passive Optical Networks CATV Networks

Other application in fiber optic systems

Specifications

Specifications:

Characteristics	Unit	Value/Performance
Operating Wavelength	nm	1260 ~ 1650
Insertion Loss (without connector loss)	dB	≤ 10.8
Uniformity	dB	≤ 1.5
Polarization Stability/Polarization Dependent Loss	dB	≤ 0.3
Directivity	dB	≥ 55
Operating temperature	^oC	-25 ~ 70, or larger
Return Loss	dB	≥ 55
Lead Length	m	1, others on request
Lead Type	-	900 μm loose tube, fiber from Corning/US, G7/EU or LS/Korea
Connector	-	- SC/APC - Ferrule material: ceramic. - Number of connectors: 10
Package type	-	Blockless PLC
Output port identification	-	- Color coding - Or number coding
Input port identification	-	Number coding
