SOT-S04-6-SC-N
SOT-S04-6-SC-N
  • Model

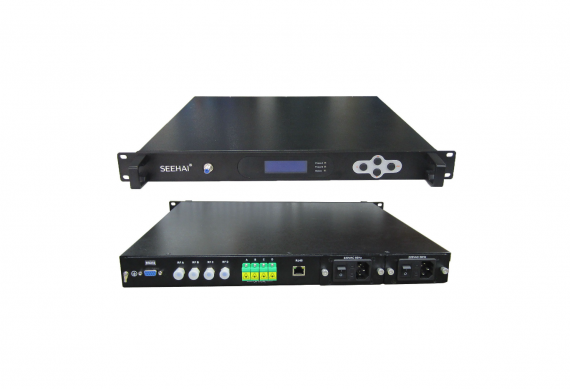

    4 Ports Standalone 1310nm Optical Transmitter
  • Brand
    Seehai
  • Price
    Call
  • Description

    In HFC broadband network, 4 Ports Standalone 1310nm Optical Transmitter can put RF CATV signal to optical modulation through the product's internal four ways coaxial laser, to realize electro-optical conversion and send continuous, stable and reliable four ways 1310nm optical signals.

    The front panel of optical transmitter has LCD display and buttons. RF test port, the rear panel has F type British connecting plug and optical output port, convenient for installation and maintenance. The transmitter adopts low power consumption design, reduces heat value and improves product stability. The input level of the transmitter is automatically controlled by the microprocessor (AGC) to achieve the best performance without user adjustment. The level (MGC) can also be manually adjusted to meet specific user requirements.

Quantity :
Describe Product

19 inch 1 U rack mount, standalone.

4 RF signal input individually, 4 optical signal output individually.

RF input level has wider operating range.

AGC/MGC mode optional.

RF level adjustment function.

Stable optical power output.

Front panel has LCD display and control operating parameters.

Adopts one switchable RF monitoring port, users can choose to check each port of RF input level.

Dual power configuration, single power supply can work independently, dual power hot backup mode. Modular power supply design, convenient and fast replacement.

Low power consumption design, low heat value, improved stability.

Standard RJ45 and RS232 Ethernet interface, to monitor operating parameter and report to network management systems.

Through the front panel LED indicator color to provide local alarm indication
Specifications

Block Diagram:

SOT-S04-6-SC-N

 Specification:

No.

Item

Unit

Parameter
  1.

Optical Wavelength

nm

1310±20
  1.

Optical Output Power

dBm

≥6
  1.

Laser



DFB from G7/EU countries
  1.

Amplifier type



MMIC from G7/EU countries
  1.

Optical Connector



SC/APC
  1.

RF Input Level

dBuV

80±5
  1.

Frequency

MHz

47 ~ 1002
  1.

RF Input impedance

Ω

75
  1.

RF Input Return Loss

dB

≥14
  1.

Link Frequency Response

dB

±1
  1.

RF ATTN Adjustment Range

dB

≥12
  1.

RF ATTN Adjustment Stepping

dB

±0.5
  1.

Level Monitor Port

dB

-20±1
  1.

RF AGC Control

dB

±5
  1.

RF Connector



British
  1.

C/CTB

dB

≥60
  1.

C/CSO

dB

≥58
  1.

C/N

dB

≥48
  1.

Operating Temperature

℃

0℃-+40℃
  1.

Storage Temperature

℃

-25℃~+85℃
  1.

Relative Humidity

%

20-85（non condensing）
  1.

Voltage

VAC

100~240
  1.

Power

W

15（MAX）
  1.

Dimension

mm

482.6 mm(L)×450mm(W)×44.45mm(H)
  1.

Weight

kg

5

Appearance Interface

Front PanelAccessory：

Dual-color status LED; large LCD; RF test port; four buttons; Slotting thumbscrew position, etc.

  Front view of :

Accessory of front panel:

No.

Function

1

Put the transmitter fix in 1U rack or Slotting thumbscrew of optical transmitting platform.

2

Handle

3

RF Test Port- RF Level Test Port

4

LCD: status and alarm display

5

Power A: LED indicator, two colors:

Green—normal operation, no report and alarm

Red —significant error or violation of major alarm limits

6

Power B: LED indicator, two colors:

Green—normal operation, no report and alarm

Red —significant error or violation of major alarm limits

7

Status: LED indicator, two colors:

Green—normal operation, no report and alarm

Red —significant error or violation of major alarm limits

8

C Button: Cancel or return

9

Button：Down

10

OK Button：Confirm

11

Button：Up



Rear Panel

Accessory：RF output port, power socket, fan and ring flange.

Front view of rear panel

 Accessory of rear panel:

No.

Function

1

Grounding Screw

2

RS232 PORT

3

No

4

RFA-RF input port

5

RFB-RF input port

6

RFC-RF input port

7

RFD- RF input port

8

OPTA- Optical output port
