SOT155-02A-1*17-SC

Model

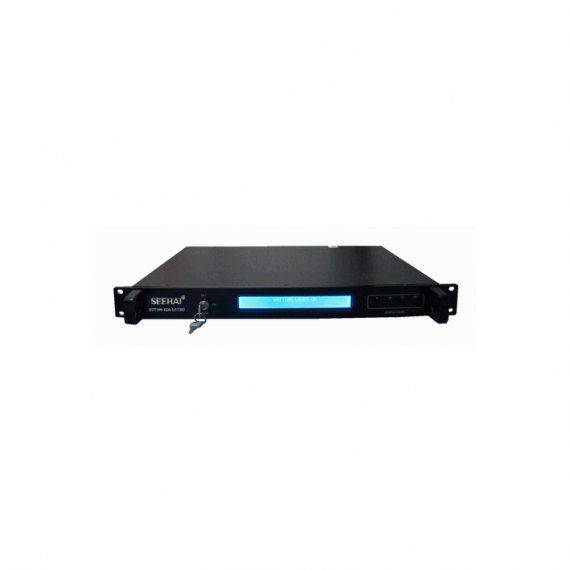

1550nm CATV Erbium Doped Fiber Amplifier (EDFA 1 Output, 17 dBm, Used for Distribution Network)
Brand

Seehai
Price

Call
Description

19 inch / 1 U rack mount, standalone.

High reliability 980nm pump laser, ED fiber, with brand names from G7 / EU countries.

Output optical power of 980nm pump laser ≥ +17 dBm.

Wide operating range, high gain and low noise figure.

Front panel display for operating parameters and warming.

RJ45 interfaces. Support MIB table for SNMP software design

2 switching power supply design, one is auto hot-standby.

When ordering, produced date of pump lasers should be within 06 months max. from present.

Dual redundant power supply.

Quantity :

Specifications

Specifications:

Optical Parameters
Wavelength	1530 to 1570nm
Connector	SC/APC (Sleeve material: ceramic, connector with shutter)
Output power	≥17dBm(1 output)
Optical input power	-5 to +10 dBm
Noise Figure (@ Pin EDFA)≥0 dBm	≤ 5.5 dB
Design Type	1 * 980nm pump laser design
Optical test point power @ 17dBm optical output power	-3 dBm; -20±1dB ref. to optical output power (1 test point optical output)
Polarization Sensitivity	≤ 0.5 dB
Output power variation	≤ ±0.5 dB
Optical Input Power For Rated Output Power	≤0 dBm (when output = 17 dBm)
Other Parameters
Control interface	RS232 and RJ45 (embedded). Support MIB table for SNMP software design
Power supply	90 to 260VAC, 50/60 Hz, 15 W (Max.), 2 hot-swappable
Max power consumption	≤50W
Operating temperature	-10℃ to +50℃
Storage temperature	-40 to +80℃
Relative humidity	-5% to 95 % (non-condensing)
Dimensions	380 D x 485 W x 45 H (mm)
Weight	6.0 kg
