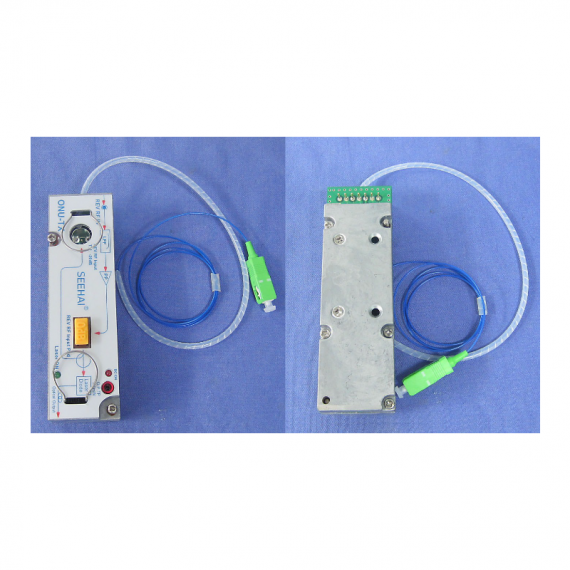

TX module for 2-port Outdoor Optical Node
TX module for 2-port Outdoor Optical Node
  • Model
    SHOT3-1310CWDM-H-B
  • Brand
    Seehai
  • Price
    Call
  • Description

    return transmitter module 1310nm (+ 3dBm) 870MHz Node .

    Module type, fitting into Optical Node with 2 RF active outputs as quoted.

    7pcs Pin, available model: Seehai SGJ-SM(a)-B with 2 RF active outputs Optical Node.

Quantity :
Specifications

Specifications:

Optical parameters

RF Bandwidth

MHz

5 - 65

RF Return Loss

dB

≥ 16

Optical wavelength

nm

1310

Laser Type (*)



Uncooled DFB Laser with isolator + Reverse Hybrid Amp. Module, brand from G7/EU countries

Optical Return Loss

dB

≥ 45

RF Flatness

dB

≤ ± 0.75

Connector

-

SC/APC (ferrule material: ceramic)

RF Input level (analog channels)

dBmV

15 to 25

Optical Output Power



3 dBm / 2 mW

Install Size：   unit: mm

TX_module_for_2_port_Outdoor_Optical_Node
